Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

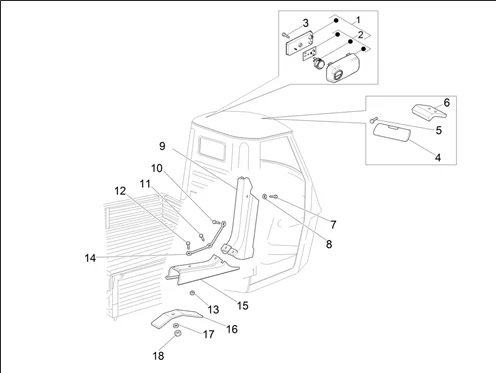

Châssis - parties plastiques - carrosseries : 02.12 COMPOSANTS DE LA CABINE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_02.12.png)
1 |
B007895 - LUMIERE INTER More informationQuantity required : 1 |
||||||
|
2 |
B007909 - RETROVISEUR INT More informationQuantity required : 1 |
||||||
|
3 |
1E003488 - VIS AUTOTARAUDEUSE More informationQuantity required : 2 |
||||||
|
4 |
1E003337 - VISION ASSY More informationQuantity required : 1 |
||||||
|
6 |
264252 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
7 |
015859 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
8 |
016670 - RONDELLE S01667000 More informationQuantity required : 2 |
||||||
|
9 |
261401 - PROTECTION More informationQuantity required : 1 |
||||||
|
10 |
015859 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
11 |
015911 - VIS S01591100 More informationQuantity required : 1 |
||||||
|
12 |
015859 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
13 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 4 |
||||||
|
14 |
016670 - RONDELLE S01667000 More informationQuantity required : 3 |
||||||
|
15 |
261402 - PROTECTION More informationQuantity required : 1 |
||||||
|
16 |
116946 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.JPG)
17 |
002383 - RONDELLE More informationQuantity required : 1 |
||||||
|
18 |
002438 - ECROU S00243800 More informationQuantity required : 1 |
