Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

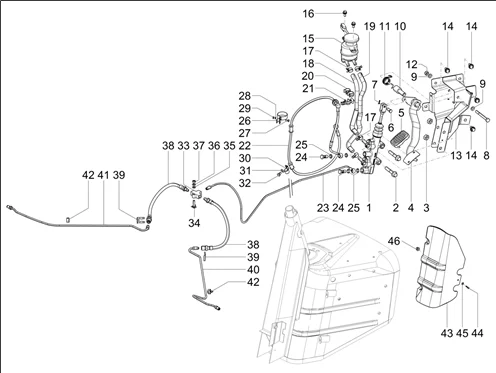

Instalation du freins - transmisisons : 05.04 SYSTÈME DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_05.04.png)
1 |
B075485 - TUBE FLEXIBLE More informationQuantity required : 1 |
||||||
|
2 |
B074999 - BOULON More informationQuantity required : 2 |
||||||
|
3 |
632056 - BOULON More informationQuantity required : 2 |
||||||
|
5 |
567461 - TAMPON More informationQuantity required : 1 |
||||||
|
6 |
652001 - PIVOT More informationQuantity required : 1 |
||||||
|
7 |
567920 - GOUPILLE More informationQuantity required : 1 |
||||||
|
8 |
030082 - BOULON S03008200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
9 |
003058 - RONDELLE S00305800 More informationQuantity required : 2 |
||||||
|
11 |
B073800 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
|
16 |
CM287316 - VIS More informationQuantity required : 1 |
||||||
|
17 |
B001543 - PIVOT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
24 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
|
26 |
126328 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
28 |
003054 - RONDELLE S00305400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
29 |
020104 - ECROU S02010400 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.JPG)
30 |
845978 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/5/img/63805.JPG)
31 |
006175 - RONDELLE S00617500 More informationQuantity required : 1 |
||||||
|
32 |
031084 - BOULON More informationQuantity required : 1 |
||||||
|
33 |
136371 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
35 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
36 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
37 |
020106 - ECROU S02010600 More informationQuantity required : 1 |
||||||
|
39 |
B005354 - COLLIER More informationQuantity required : 2 |
||||||
|
42 |
191002 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
44 |
015859 - VIS More informationQuantity required : 3 |
||||||
|
45 |
256382 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
46 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716- More informationQuantity required : 3 |
