Vehicle Exploded View - PIAGGIO VU APE CC 50 Ape 50 2T E4 2018-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

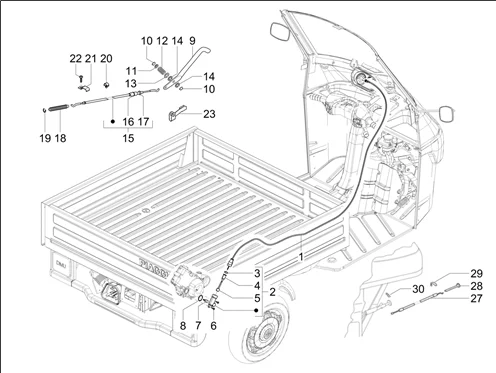

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1011/Ape_50_2T_E4_2018-2021_05.03.png)
2 |
1252535 - PRISE MOUV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/2/5/9/img/113259.jpg)
3 |
117402 - BAGUE More informationQuantity required : 1 |
||||||
|
4 |
117401 - BAGUE More informationQuantity required : 1 |
||||||
|
5 |
125254 - PIGNON COMPTEUR More informationQuantity required : 1 |
||||||
|
6 |
125647 - VIS More informationQuantity required : 2 |
||||||
|
7 |
125256 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
8 |
017503 - BAGUE S01750300 More informationQuantity required : 1 |
||||||
|
9 |
258827 - LEVIER M AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.JPG)
10 |
005970 - BAGUE S00597000 More informationQuantity required : 2 |
||||||
|
11 |
013843 - RONDELLE S01384300 More informationQuantity required : 1 |
||||||
|
12 |
258639 - RESSORT More informationQuantity required : 1 |
||||||
|
13 |
258641 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/9/img/68489.JPG)
14 |
709037 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
258646 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/7/5/img/139375.jpg)
16 |
116260 - CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/7/4/img/65474.jpg)
17 |
020206 - ECROU S02020600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/3/0/img/113930.jpg)
18 |
118806 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/6/img/65796.jpg)
19 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -180859- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/9/img/65739.JPG)
20 |
140435 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/5/9/img/109859.jpg)
21 |
018732 - GRIFFE More informationQuantity required : 1 |
||||||
|
23 |
1172734 - CROCHET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/4/8/img/116148.jpg)
27 |
612790 - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/5/1/1/img/114511.jpg)
28 |
567083 - BOUTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/4/img/65804.jpg)
29 |
183321 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/8/8/img/111588.JPG)
30 |
075962 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/8/8/6/img/112886.jpg)
31 |
TRANSMISSION THROTTLE CABLE(FROM HANDLE TO SPLITTER) "PIAGGIO GENUINE PART" PIAGGIO 50 APE -B007701- More informationQuantity required : 1 |
