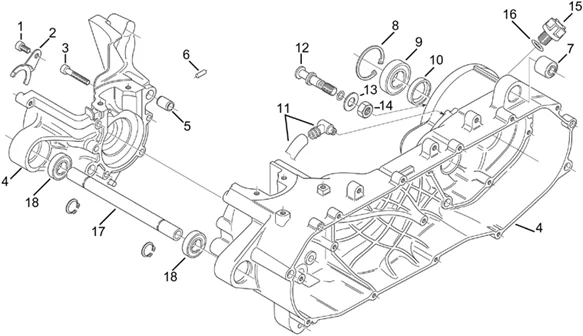

Moteur : 29.37 CARTERS CENTRAUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_29.37.PNG)
1 |
AP8206202 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/8/7/img/55687.jpg)
2 |
AP8206138 - PLAQUETTE FIXATION JOINT SPY More informationQuantity required : 1 |
||||||
|
3 |
AP8502567 - VIS More informationQuantity required : 1 |
||||||
|
5 |
AP8206169 - GOUPILLE CARTER More informationQuantity required : 1 |
||||||
|
6 |
AP8206578 - ROULEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/8/1/img/55681.jpg)
7 |
SILENTBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SONIC, SR, GULLIVER, AMICO, SCARABEO -AP8206129- More informationQuantity required : 1 |
||||||
|
8 |
AP8501481 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
||||||
|
9 |
AP8206558 - ROULEMENT More informationQuantity required : 1 |
||||||
|
10 |
AP8206215 - JOINT SPI More informationQuantity required : 1 |
||||||
|
11 |
AP8206131 - RACCORD+TUBE RENIF. More informationQuantity required : 1 |
||||||
|
12 |
AP8206171 - PIVOT POUR SABOTS FREIN More informationQuantity required : 1 |
||||||
|
13 |
AP8502471 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
14 |
AP8502437 - ECROU More informationQuantity required : 1 |
||||||
|
15 |
AP8206475 - BOUCHON ALIMENTATION HUILE More informationQuantity required : 1 |
||||||
|
16 |
AP8206482 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/1/3/img/55713.jpg)
17 |
SPACER- FOR MAIN CRANKCASE "PIAGGIO GENUINE PART" 50 SR 1993>1996, AMICO 1992>1998 -AP8206188- More informationQuantity required : 1 |
