Vehicle Exploded View - APRILIA AMICO 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

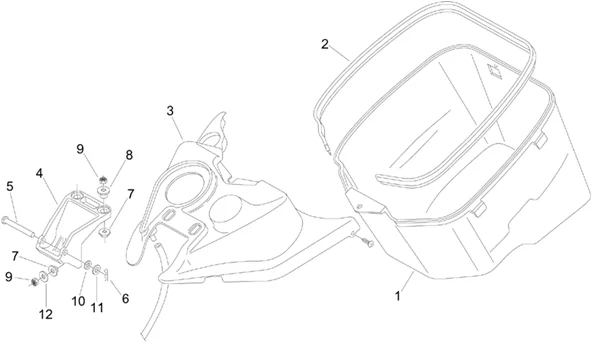

Chassis : 28.16 CARROSSERIE POSTERIEURE III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_28.16.PNG)
2 |
AP8220407 - JOINT COFFRE NOIR 7X8 More informationQuantity required : 2 |
||||||
|
4 |
AP8221179 - ATTACHE STRUCT.SELLE INF. More informationQuantity required : 4 |
||||||
|
6 |
AP8201431 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
7 |
AP8121075 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
|
8 |
AP8121679 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
9 |
AP8150395 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.JPG)
10 |
AP8120592 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
11 |
AP8150017 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
12 |
AP8150179 - RONDELLE More informationQuantity required : 1 |
