Vehicle Exploded View - APRILIA AMICO 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

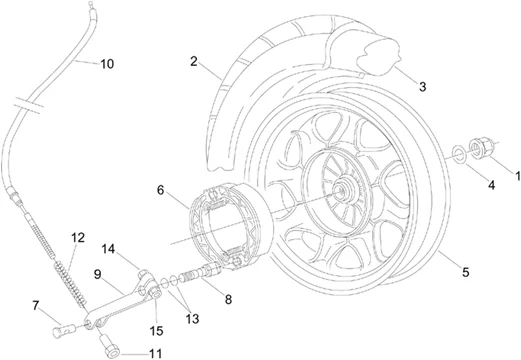

Chassis : 28.29 ROUE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_28.29.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
1 |
AP8152244 - ECROU DAX BRID. More informationQuantity required : 1 |
||||||
4 |
AP8150471 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
6 |
AP8213133 - SABOTS A RESS-PAIRE More informationQuantity required : 1 |
||||||
|
7 |
AP8221120 - AXE FIX. CABLE FREIN More informationQuantity required : 1 |
||||||
|
9 |
AP8232678 - LEVIER FREIN AR BR.GALVA; More informationQuantity required : 1 |
||||||
|
10 |
AP8214104 - CABLE FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
11 |
AP8101103 - REGLAGE LEVIER FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/8/8/img/56388.jpg)
12 |
AP8213137 - RES. HELIC. COMPR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/9/img/46639.jpg)
13 |
AP8120769 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/6/img/71916.JPG)
14 |
AP8152136 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
