Vehicle Exploded View - APRILIA AMICO 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

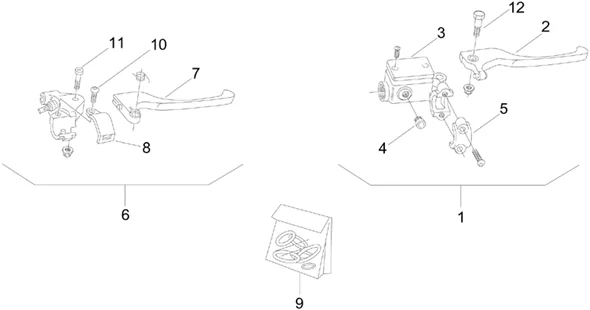

Chassis : 28.21 GROUPE COMMANDES II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_28.21.PNG)
2 |
AP8218156 - LEVIER FREIN AV+REGL.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/7/img/56647.jpg)
2 |
FRONT BRAKE LEVER- GRIMECA "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO, RALLY, SR, AMICO, 125 LEONARDO -AP8218273- More informationQuantity required : 1 |
||||||
|
3 |
AP8213475 - COUVERCLE POMPE; More informationQuantity required : 1 |
||||||
|
4 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
5 |
AP8218155 - CAVALIER LEVIER FREIN; More informationQuantity required : 1 |
||||||
|
9 |
AP8213191 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
|
10 |
AP8118472 - VIS; More informationQuantity required : 1 |
||||||
|
12 |
AP8221231 - PIVOT DE LEVIER FREIN AV. More informationQuantity required : 1 |
