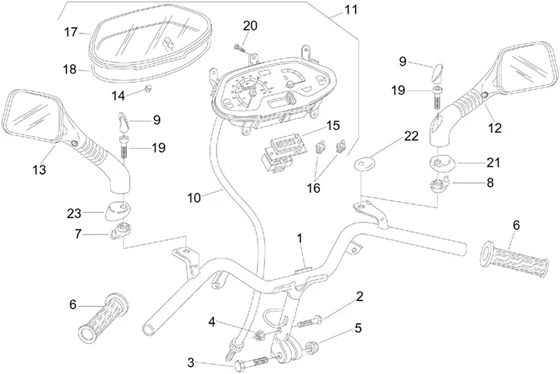

Vehicle Exploded View - APRILIA AMICO 50 1996-1998 APRILIA

Chassis : 28.19 GUIDON-TABLEAU DE BORD
Guidon-tableau de bord
Search
AP8218160 - GUIDON AVEC CATAPHORESE;

1
P2R reference P2R reference 56629
Maker reference Maker reference AP8218160

AP8218160 - GUIDON AVEC CATAPHORESE;

More information

Quantity required : 1
AP8150290 - VIS

2
P2R reference P2R reference 71855
Maker reference Maker reference AP8150290

AP8150290 - VIS

More information

Quantity required : 1
AP8150323 - VIS

3
P2R reference P2R reference 50858
Maker reference Maker reference AP8150323

AP8150323 - VIS

More information

Quantity required : 1
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300-

4
P2R reference P2R reference 71959
Maker reference Maker reference AP8152300

NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300-

More information

Quantity required : 1
AP8152301 - ECROU AUTOBLOQU.

5
P2R reference P2R reference 71960
Maker reference Maker reference AP8152301

AP8152301 - ECROU AUTOBLOQU.

More information

Quantity required : 1
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275-

6
P2R reference P2R reference 139350
Maker reference Maker reference AP8218275

GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275-

More information

Quantity required : 1
AP8202071 - BOUCHON RETRO DTE+GCHE

9
P2R reference P2R reference 55423
Maker reference Maker reference AP8202071

AP8202071 - BOUCHON RETRO DTE+GCHE

More information

Quantity required : 2
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 50 AMICO -AP8214169-

10
P2R reference P2R reference 56560
Maker reference Maker reference AP8214169

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 50 AMICO -AP8214169-

More information

Quantity required : 1
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201975-

12
P2R reference P2R reference 55411
Maker reference Maker reference AP8201975

MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201975-

More information

Quantity required : 1
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201976-

13
P2R reference P2R reference 55412
Maker reference Maker reference AP8201976

MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201976-

More information

Quantity required : 1
AP8212405 - CAOUTCHOUC HORLOGE

14
P2R reference P2R reference 56258
Maker reference Maker reference AP8212405

AP8212405 - CAOUTCHOUC HORLOGE

More information

Quantity required : 1
DIGITAL CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, X7/APRILIA 125-250-300 ATLANTIC, LEONARDO -AP8212406-

15
P2R reference P2R reference 72187
Maker reference Maker reference AP8212406

DIGITAL CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, X7/APRILIA 125-250-300 ATLANTIC, LEONARDO -AP8212406-

More information

Quantity required : 1
AP8212407 - PORTE-AMPOULE COMPLET

16
P2R reference P2R reference 56259
Maker reference Maker reference AP8212407

AP8212407 - PORTE-AMPOULE COMPLET

More information

Quantity required : 2
AP8220555 - JOINT

18
P2R reference P2R reference 56924
Maker reference Maker reference AP8220555

AP8220555 - JOINT

More information

Quantity required : 1
SCREW - (8x40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

19
P2R reference P2R reference 65747
Maker reference Maker reference 149104

SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104-

More information

Quantity required : 2
AP8150421 - VIS TARAUD POUR PLAST. INOX

20
P2R reference P2R reference 71879
Maker reference Maker reference AP8150421

AP8150421 - VIS TARAUD POUR PLAST. INOX

More information

Quantity required : 5
