Vehicle Exploded View - APRILIA AMICO 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

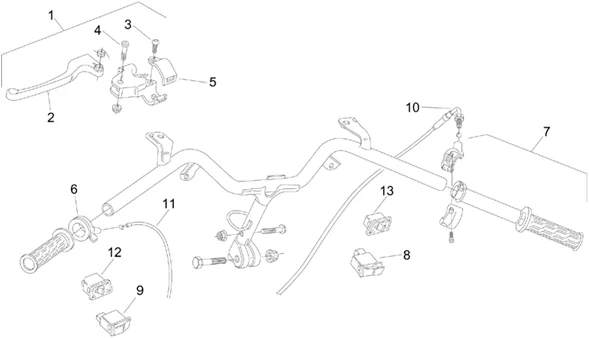

Chassis : 28.20 GROUPE COMMANDES I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_28.20.PNG)
1 |
AP8218136 - COMMANDE FREIN ARRIERE GCHE; More informationQuantity required : 1 |
||||||
|
1 |
AP8218236 - LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
2 |
AP8218153 - LEVIER FREIN ARRIERE NU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/4/8/img/56648.jpg)
2 |
BRAKE LEVER "PIAGGIO GENUINE PART" APRILIA 50 SR 1996>1999 AR -AP8218274- More informationQuantity required : 1 |
||||||
|
3 |
AP8118472 - VIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8218154 - CAVALIER LEVIER FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/8/img/72188.jpg)
6 |
CHOKE CONTROL "PIAGGIO GENUINE PART" APRILIA 50 RALLY, RX, SX, GULLIVER, AMICO, SR -AP8212529- More informationQuantity required : 1 |
||||||
|
7 |
AP8218238 - COMMANDE GAZ+POIGNEE NOIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/8/img/47448.jpg)
8 |
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124208- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
9 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8124209- More informationQuantity required : 1 |
||||||
|
10 |
AP8214109 - CABLE GAZ; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/3/9/img/56539.jpg)
11 |
AP8214108 - CABLE STARTER; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
12 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" COMMON TO THE 50CC APRILIA SCOOTER RANGE 1995>2009 -AP8215767- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/3/6/img/56336.jpg)
13 |
LIGHTS SWITCH "PIAGGIO GENUINE PART" APRILIA 50 RALLY, AMICO, GULLIVER, SR, SONIC -AP8212837- More informationQuantity required : 1 |
