Vehicle Exploded View - APRILIA AMICO 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

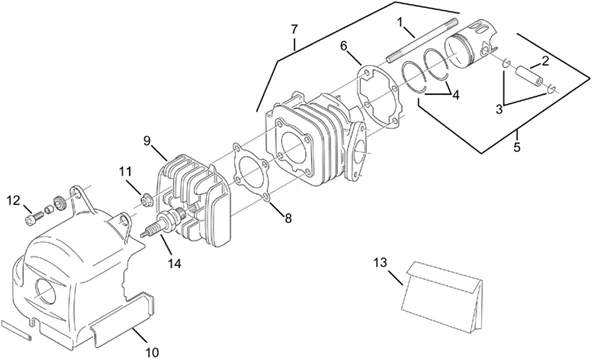

Moteur : 29.35 GROUPE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_29.35.PNG)
1 |
AP8206189 - VIS SANS T?TE More informationQuantity required : 1 |
||||||
|
2 |
AP8206174 - AXE More informationQuantity required : 1 |
||||||
|
3 |
AP8206176 - BAGUE DE BUTEE AXE More informationQuantity required : 1 |
||||||
|
4 |
AP8206120 - SEGMENTS - SERIE More informationQuantity required : 1 |
||||||
|
5 |
AP8206219 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
5 |
AP8206218 - PISTON CPL. More informationQuantity required : 1 |
||||||
|
7 |
AP8206224 - CYLINDRE AV.PISTON More informationQuantity required : 1 |
||||||
|
7 |
AP8206456 - CYLINDRE AV.PISTON More informationQuantity required : 1 |
||||||
|
10 |
AP8206113 - COIFFE CONVOYEUR CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/7/3/img/72173.jpg)
14 |
AP8206870 - BOUGIE NGK BR7HS More informationQuantity required : 1 |
