Eclatés de véhicule - VESPA VESPA PX 125 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

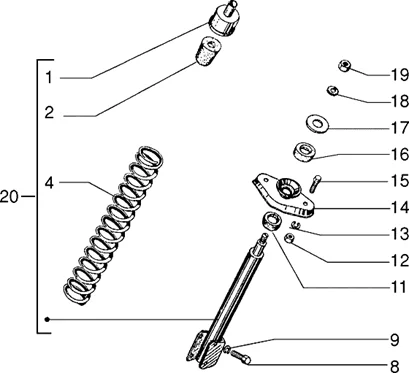

Suspensions-roues : T39 AMORTISSEUR AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/703/Vespa_PX_125_E_1998-2005_T39.PNG)
1 |
SUPPORT AMORTISEUR |
||||||
|
2 |
TAMPON |
||||||
|
4 |
RESSORT SUSP AVT PXE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
8 |
VIS BTR (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME -149104 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
9 |
RONDELLE ELASTIQUE COURBE (8.4X15X0.8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -709047 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/6/img/74966.jpg)
11 |
TAMPON DE BRAS DE FOURCHE AVANT ORIGINE PIAGGIO 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
12 |
ECROU (M8X6,5) ORIGINE PIAGGIO COMMUN A LA GAMME -020108 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
13 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
174806 - PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
15 |
VIS TH (8X22) ORIGINE PIAGGIO COMMUN A LA GAMME -031119 Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
TAMPON DE BRAS DE FOURCHE AVANT ORIGINE PIAGGIO 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/7/img/74967.jpg)
17 |
RONDELLE PLATE (10.5X35X2) ORIGINE PIAGGIO COMMUN A LA GAMME -174088 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/6/img/65346.jpg)
18 |
RONDELLE EVENTAIL (10,5) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -012535 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
19 |
ECROU (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -021210 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/8/1/img/140381.jpg)
20 |
AMORTISSEUR AVANT ORIGINE PIAGGIO 125 PX -58570R5 Plus d'informationsQuantité requise : 1 |
