Eclatés de véhicule - VESPA VESPA PX 125 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

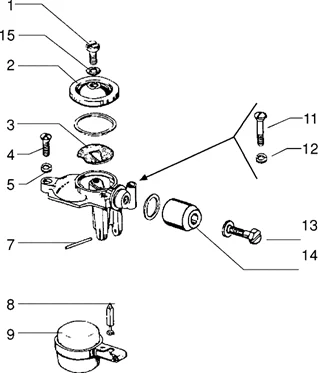

Moteur : T20 PIECES COMPOSANT LE CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/703/Vespa_PX_125_E_1998-2005_T20.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/7/7/img/74277.jpg)
1 |
VIS DE BOISSEAU DE GAZ ORIGINE PIAGGIO 125 PX VESPA -085299 Plus d'informationsQuantité requise : 1 |
||||||
1 |
AP8222645 - VIS FIX.PIPETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/3/5/img/74235.jpg)
2 |
COUVERCLE FILTRE ESSENCE CARBURATEUR ORIGINE PIAGGIO 125 PX -082933 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/2/2/img/74022.jpg)
2 |
RESSORT VIS DE RALENTI ORIGINE PIAGGIO 125 VESPA PX -026018 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
COUVERCLE FILTRE ESSENCE CARBURATEUR ORIGINE PIAGGIO 125 PX -082933 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
VIS |
||||||
|
3 |
239089 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/3/6/5/img/74365.jpg)
4 |
VIS TH (4X14) ORIGINE PIAGGIO COMMUN A LA GAMME -092395 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/0/img/65670.jpg)
4 |
RESSORT VIS AIR ORIGINE PIAGGIO COMMUN A LA GAMME -085285 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
092410 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
150049 - RENIFLARD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/8/7/img/75187.jpg)
6 |
194518 - GICLEUR 45/100 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/1/img/65671.jpg)
7 |
AXE DE FLOTEUR DE CARBURATEUR ORIGINE PIAGGIO 125 PX VESPA -085291 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
BUSE/GICLEUR MAXI 96/100 ORIGINE PIAGGIO 125 PX -086947 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/0/3/img/76903.jpg)
8 |
POINTEAU ORIGINE PIAGGIO 125 VESPA PX 1998> -247652 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/7/4/img/74274.jpg)
9 |
FLOTTEUR DE CARBURATEUR ORIGINE PIAGGIO 125 VESPA PX 1998> -085293 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/2/6/8/img/75268.jpg)
9 |
BOISSEAU/VOLET DE GAZ ORIGINE PIAGGIO 125 PX VESPA -198970 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/7/8/img/74278.jpg)
10 |
RESSORT BOISSEAU DE GAZ ORIGINE PIAGGIO 125 PX VESPA -085304 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
097645 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
092712 - GICLEUR Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
092410 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
241089 - SOUPAPE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
|
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/2/7/5/img/74275.jpg)
14 |
085295 - RACCORD D'ESS. CARBURATEUR Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
COUVERCLE VOLET GAZ |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/4/4/img/108544.jpg)
15 |
VIS TH (10X70) ORIGINE PIAGGIO COMMUN A LA GAMME -018572 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/8/4/4/img/76844.jpg)
15 |
JOINT DE CARBURATEUR (5.2X9X0.8) ORIGINE PIAGGIO 125 VESPA PX 2005< -242277 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/5/3/3/img/74533.jpg)
16 |
TIGE DE BOISSEAU DE GAZ ORIGINE PIAGGIO 125 PX VESPA -113010 Plus d'informationsQuantité requise : 1 |
