Eclatés de véhicule - VESPA VESPA PX 125 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

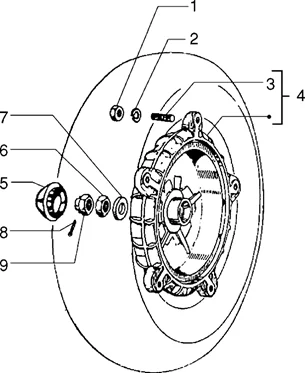

Moteur : T23 TAMBOUR DU FREIN AR.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/703/Vespa_PX_125_E_1998-2005_T23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
1 |
ECROU (M8X6,5) ORIGINE PIAGGIO COMMUN A LA GAMME -020108 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
2 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/5/8/img/76658.jpg)
3 |
GOUJON DE ROUE ARRIERE ORIGINE PIAGGIO 125 PX VESPA -229796 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/8/5/1/img/76851.jpg)
4 |
TAMBOUR DE FREIN ARRIERE ORIGINE PIAGGIO 125 VESPA PX 1998> -2427721 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/9/7/img/78397.jpg)
5 |
BOUCHON/CACHE DE ROUE ARRIERE ORIGINE PIAGGIO 125 PX -415519 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
6 |
ECROU (M16) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -563728 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/7/img/65757.jpg)
7 |
RONDELLE PLATE (16X34X2) ORIGINE PIAGGIO COMMUN A LA GAMME -159347 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
8 |
GOUPILLE SECURITE ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -012789 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
9 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
CAGE FIXATION ECROU DE ROUE ARRIERE ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME SCOOTER ET MAXISCOOTER -1C004746 Plus d'informationsQuantité requise : 1 |
