Eclatés de véhicule - VESPA VESPA PX 125 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

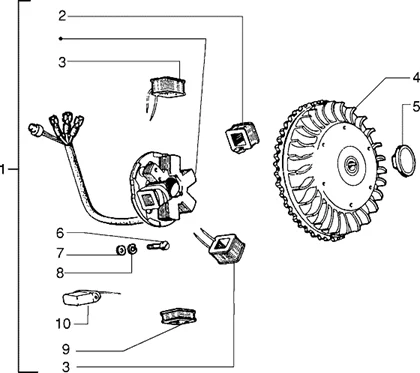

Moteur : T14 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/703/Vespa_PX_125_E_1998-2005_T14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/5/9/7/img/79597.jpg)
1 |
STATOR ALLUMAGE ORIGINE PIAGGIO 125 VESPA PX 1998>2017 -497652 Plus d'informationsQuantité requise : 1 |
||||||
2 |
166657 - BOBINE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
BOBINE N4 |
||||||
|
4 |
ROTOR ALLUMAGE ORIGINE PIAGGIO VESPA 125 PX -1794993- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/5/3/img/74953.jpg)
5 |
COUVERCLE CACHE ECROU VOLANT ORIGINE PIAGGIO 125 PX -166366 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/3/8/img/65338.jpg)
6 |
VIS TETE FENDUE (5X14) ORIGINE PIAGGIO COMMUN A LA GAMME - 010047 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
7 |
RONDELLE ELASTIQUE (5,3X10) ORIGINE PIAGGIO COMMUN A LA GAMME -006965 Plus d'informationsQuantité requise : 3 |
||||||
|
8 |
003055 - RONDELLE Plus d'informationsQuantité requise : 3 |
||||||
|
9 |
193878 - BOBINE N 3 PIAGGIO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/2/img/65822.jpg)
10 |
CAPTEUR ALLUMAGE ORIGINE PIAGGIO 125 VESPA PX 1998>/TRIPORTEUR APE 50 1980>2018 -196549 Plus d'informationsQuantité requise : 1 |
