Eclatés de véhicule - VESPA VESPA PX 125 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

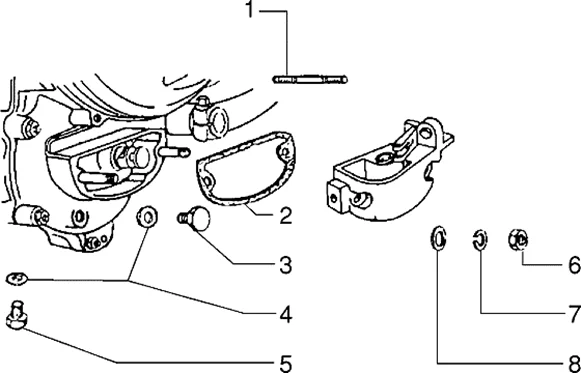

Moteur : T12 FIXATIONS SELECTEUR CHANGEMENT DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/703/Vespa_PX_125_E_1998-2005_T12.PNG)
1 |
GOUJON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/2/7/img/94527.jpg)
2 |
JOINT DE BOITIER COMMANDE DE VITESSE ORIGINE PIAGGIO VESPA 125 PX -B013738 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/5/2/img/74052.jpg)
3 |
VIS TFR (8X10) ORIGINE PIAGGIO COMMUN A LA GAMME -030280 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
4 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/7/img/65737.jpg)
5 |
BOUCHON DE VIDANGE REDUCTEUR TRANSMISSION ORIGINE PIAGGIO 125 VESPA PX, COMMUN A LA GAMME SCOOTER 50 CC 1998>2004 -138345 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/2/img/65462.jpg)
6 |
ECROU (M7X5.5) DE CULASSE ORIGINE PIAGGIO TRIPORTEUR APE 50/ VESPA PX 125 -020107 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
7 |
RONDELLE GROWER (6,7X12X1.9) ORIGINE PIAGGIO COMMUN A LA GAMME -016407 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
8 |
RONDELLE PLATE (7X12.7.1) ORIGINE PIAGGIO COMMUN A LA GAMME -003057 Plus d'informationsQuantité requise : 2 |
