Eclatés de véhicule - VESPA VESPA PX 125 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

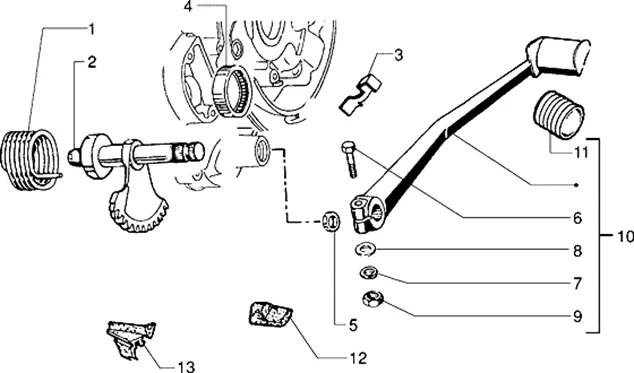

Moteur : T9 LEVIER DE DEMARRAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/703/Vespa_PX_125_E_1998-2005_T9.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/7/3/img/74073.jpg)
1 |
RESSORT RAPPEL KICK ORIGINE VESPA PX 125 150 -047218 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/7/9/img/74779.jpg)
2 |
AXE DE KICK ORIGINE PIAGGIO 125 PX VESPA -148570 Plus d'informationsQuantité requise : 1 |
||||||
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/5/1/6/img/74516.jpg)
4 |
CAGE A AIGUILLE AXE DE KICK ORIGINE PIAGGIO 125 VESPA PX 1998> -106956 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/8/0/img/73680.jpg)
5 |
JOINT TORIQUE (16X21X2.5) ORIGINE PIAGGIO COMMUN A LA GAMME -006721 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
015861 - BOULON S01586100 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
7 |
RONDELLE (8,15X13,75X4,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016408 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
8 |
RONDELLE PLATE (8.4X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -003038 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
9 |
ECROU (M8) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -020008 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/7/9/img/74979.jpg)
10 |
KICK DE DEMARRAGE ORIGINE PIAGGIO 125 VESPA PX 1998> -1743125 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/8/2/6/img/76826.jpg)
11 |
CAOUTCHOUC REVETEMENT KICK DE DEMARRAGE ORIGINE PIAGGIO 125 VESPA PX 1998> -241004 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/3/8/img/75038.jpg)
12 |
TAMPON DE CARTER ORIGINE PIAGGIO 125 VESPA PX -178338 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/7/5/img/74775.jpg)
13 |
AILETTE CARTER MOTEUR ORIGINE PIAGGIO 125 PX VESPA -146129 Plus d'informationsQuantité requise : 1 |
