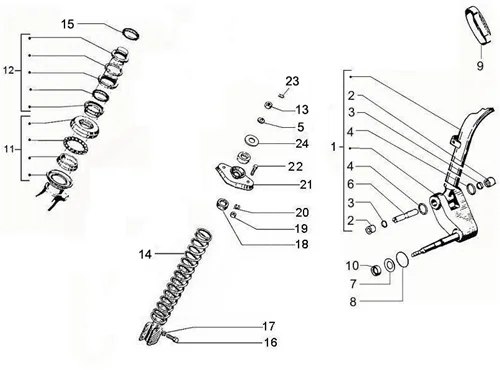

Suspensions - roues : 04.07 COMPONENTI DELLA FORCELLA MINGXING
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_04.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/1/1/img/80011.JPG)
1 |
FRONT FORK "PIAGGIO GENUINE PART" 125 VESPA PX -5640715- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/2/6/2/img/75262.jpg)
2 |
ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/0/7/img/65707.jpg)
3 |
GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/4/img/63834.jpg)
4 |
GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731- More informationQuantity required : 2 |
||||||
5 |
667058 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/9/img/65779.jpg)
6 |
ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/4/img/75024.jpg)
7 |
177445 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/6/img/65776.jpg)
8 |
177408 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/3/3/img/80033.jpg)
9 |
FORK PROTECTION - CHROME "PIAGGIO GENUINE PART" 125 VESPA PX -564222- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/2/8/img/75028.jpg)
10 |
177521 - BAGUE ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/1/8/img/87018.jpg)
11 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545- More informationQuantity required : 1 |
||||||
|
11 |
STEERING COLUMN BEARING (UPPER) "PIAGGIO GENUINE PART" 125 FLY, VESPA GTS, VESPA LXV, PRIMAVERA , VESPA S -65007545- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/6/1/img/68161.jpg)
12 |
UPPER HEADSET "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, FLY, LIBERTY, VESPA LX, 125 VESPA PX, 125-250-300-400-500 MP3, YOURBAN/GILERA 50 STALKER, RUNNER, 125 NEXUS, RUNNER/APRILIA 50 SR -65069345- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/9/6/4/img/73964.jpg)
13 |
021210 - ECROU EX 319438 + S02121000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/8/1/img/140381.JPG)
14 |
58570R5 - AMORTISSEUR AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/3/img/63783.jpg)
15 |
STEERING WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC + MAXISCOOTER 125 CC -0037514- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
16 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
17 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/6/img/74966.jpg)
18 |
FRONT SUSPENSION ARM BUFFER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, 125-250-300 VESPA GTS, 50-125 VESPA LX, PRIMAVERA, SPRINT, VESPA-S, 125 VESPA PX -174085- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
19 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
20 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
|
21 |
174806 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
22 |
031119 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
23 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/6/7/img/74967.jpg)
24 |
174088 - RONDELLE More informationQuantity required : 1 |
