Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

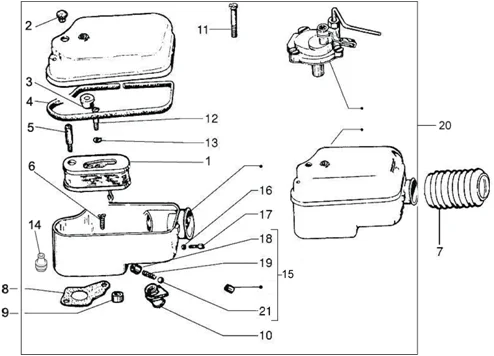

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_01.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/6/img/65996.jpg)
1 |
AIR FILTER "PIAGGIO GENUINE PART" 125 VESPA PX 2011> -247556- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/3/img/65673.jpg)
2 |
087975 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/1/5/img/74115.jpg)
3 |
058364 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/7/9/9/img/76799.jpg)
4 |
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" 125 VESPA PX -239049- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/7/9/6/img/73796.jpg)
5 |
SCREW - FOR AIR FILTER "PIAGGIO GENUINE PART" 125 VESPA PX -014743- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/5/1/img/74051.jpg)
6 |
030262 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/1/6/img/76616.jpg)
7 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" 125 VESPA PX -227205- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/2/8/img/94528.jpg)
8 |
GASKET FOR AIR FILTER COVER "PIAGGIO GENUINE PART" VESPA 125 PX -B013739- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/3/2/img/65732.JPG)
9 |
133238 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/5/3/5/img/74535.JPG)
10 |
113060 - PASSE CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/7/4/0/img/76740.jpg)
11 |
SCREW - FOR UPPER HANDLEBAR COVER "PIAGGIO GENUINE PART" 125-350-500 X10, 125 VESPA PX -235747- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/9/img/68759.jpg)
12 |
SCREW - FOR WATER PUMP HOUSING "PIAGGIO GENUINE PART" 125 X-EVO, X9, BEVERLY, VESPA GTS/GILERA 125 NEXUS, RUNNER -828493 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
13 |
016405 - RONDELLE S01640500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/7/9/8/img/76798.jpg)
14 |
239017 - PASSE VIS AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/1/2/img/94712.JPG)
15 |
B0168166 - CORPS FILTRE A AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/6/img/63766.JPG)
16 |
002613 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/6/4/1/img/73641.jpg)
17 |
002612 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/6/8/5/img/74685.jpg)
18 |
133578 - BAGUE More informationQuantity required : 1 |
||||||
19 |
113291 - RESSORT More informationQuantity required : 1 |
||||||
|
20 |
B0167155 - GROUPE FILTRE A AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/2/img/65372.jpg)
21 |
014246 - BILLE More informationQuantity required : 1 |
