Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

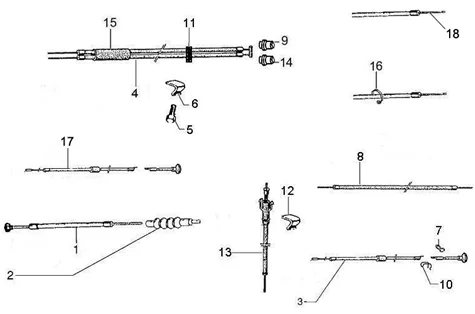

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/9/3/img/77393.jpg)
1 |
CABLE KIT FOR CLUTCH COMMAND "PIAGGIO GENUINE PART" 125 VESPA PX -272606- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/8/9/4/img/74894.jpg)
2 |
156401 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/0/7/img/90207.jpg)
3 |
CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" 125 VESPA PX -667208- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/6/2/7/img/86627.jpg)
4 |
CABLE KIT FOR GEARBOX SHIFT CONTROL "PIAGGIO GENUINE PART" 125 VESPA PX -6465665- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/5/img/65405.jpg)
5 |
015946 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/1/img/66081.jpg)
6 |
269273 - COLLIER TUYAU More informationQuantity required : 1 |
||||||
7 |
050207 - CIRCLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/1/8/2/img/90182.JPG)
8 |
667181 - TRANSMISSION GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/6/7/img/81467.jpg)
9 |
580906 - TERMINALE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/0/4/img/65804.jpg)
10 |
183321 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/8/1/9/img/74819.JPG)
11 |
152210 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/9/6/9/img/82969.jpg)
12 |
601102 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/3/8/6/img/90386.jpg)
13 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 125 VESPA PX -668463- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/4/6/8/img/81468.JPG)
14 |
580908 - TERMINALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/3/3/7/img/74337.jpg)
15 |
090541 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
16 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 2 |
||||||
|
17 |
CHOKE - TIE WITH KNOB "PIAGGIO GENUINE PARTS" VESPA 125 PX -580938- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/6/8/img/75168.jpg)
18 |
REAR BRAKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" 125 VESPA PX -191804- More informationQuantity required : 1 |
