Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

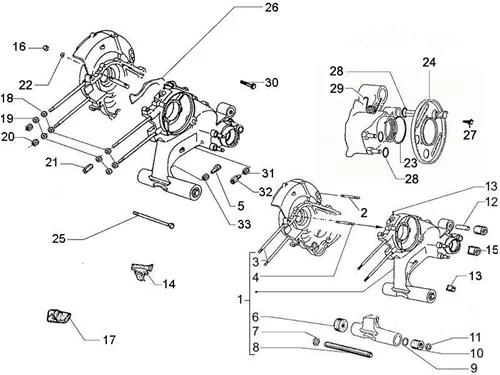

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_01.05.PNG)
1 |
8410315 - CARTER MOTEUR More informationQuantity required : 1 |
||||||
|
2 |
011288 - GOUJON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/8/0/5/img/74805.jpg)
3 |
CYLINDER STUD BOLT "PIAGGIO GENUINE PART" 125 VESPA PX -150656- More informationQuantity required : 4 |
||||||
|
4 |
003972 - VIS SANS T?TE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/8/9/3/img/74893.jpg)
5 |
SCREW - ADJUSTING SCREW "PIAGGIO GENUINE PART" 125 VESPA PX -156400- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/2/4/img/74124.jpg)
6 |
059589 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/7/7/img/74077.jpg)
7 |
047945 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/7/6/img/74076.JPG)
8 |
047944 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/2/5/img/74125.JPG)
9 |
059590 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/2/3/img/74123.jpg)
10 |
059588 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/0/8/4/img/74084.jpg)
11 |
048988 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/5/5/9/img/76559.jpg)
12 |
223604 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.JPG)
13 |
484993 - PIVOT DE CENTR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/7/5/img/74775.jpg)
14 |
146129 - AILETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/8/3/img/74983.jpg)
15 |
174514 - BAGUE AXE PE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/2/img/65462.jpg)
16 |
NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APE 50/ VESPA PX 125 -020107- More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/3/8/img/75038.jpg)
17 |
CRANKCASE PAD "PIAGGIO GENUINE PART" 125 VESPA PX -178338- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/8/img/63778.jpg)
18 |
WASHER "PIAGGIO GENUINE PART" 125 VESPA PX, APE -003057- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/7/img/65417.jpg)
19 |
016407 - RONDELLE S01640700 More informationQuantity required : 4 |
||||||
|
20 |
NUT - FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APE 50/ VESPA PX 125 -020107- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/7/9/7/img/76797.jpg)
21 |
238969 - ECROU More informationQuantity required : 1 |
||||||
|
22 |
016407 - RONDELLE S01640700 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/1/8/6/img/74186.jpg)
23 |
078163 - GARNITURE More informationQuantity required : 1 |
||||||
|
24 |
0784825 - DISQUE More informationQuantity required : 1 |
||||||
|
25 |
008419 - BOULON S00841900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/7/8/6/img/73786.jpg)
25 |
014565 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/5/2/6/img/94526.jpg)
26 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" 125 VESPA PX -B013737- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/2/img/65712.jpg)
27 |
SCREW - FOR CRANKCASE "PIAGGIO GENUINE PART" 125 VESPA PX, APE -121668- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/7/3/4/img/74734.jpg)
28 |
139433 - JEU JOINTS More informationQuantity required : 1 |
||||||
|
29 |
078521 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/7/4/2/img/73742.jpg)
30 |
BOLT FOR MOTOR HOUSING "PIAGGIO GENUINE PART" 125 VESPA PX -012485- More informationQuantity required : 6 |
||||||
|
31 |
020207 - ECROU S02020700 More informationQuantity required : 1 |
||||||
|
32 |
023823 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
33 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
