Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

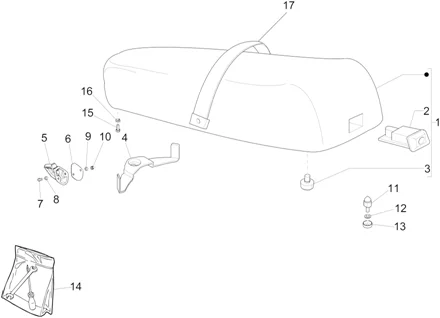

Châssis - parties plastiques - carrosseries : 02.39 SELLE SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_02.39.PNG)
1 |
1B002613 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
673291 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
673921 - SELLE More informationQuantity required : 1 |
||||||
|
2 |
178887 - SERRURE More informationQuantity required : 1 |
||||||
|
2 |
577267 - SERRURE DE SELLE VNX/VSX FL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/6/4/img/77164.jpg)
3 |
267420 - TAMPON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/4/9/6/img/76496.jpg)
4 |
219857 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/6/1/3/img/76613.jpg)
5 |
227153 - CROCHET More informationQuantity required : 1 |
||||||
|
6 |
057371 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/1/6/img/68516.JPG)
7 |
825079 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/0/img/65360.jpg)
8 |
013763 - PLAQUETTE S01376300 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
10 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
11 |
240165 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
12 |
012540 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
240166 - GODET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/8/9/img/67789.jpg)
14 |
TOOL SET "PIAGGIO GENUINE PART" 50 LIBERTY, NRG, VESPA LX, 125 PX/GILERA 50 RUNNER -635091- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
15 |
031119 - BOULON More informationQuantity required : 3 |
||||||
|
16 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 3 |
||||||
|
17 |
PASSENGER HANDLE "PIAGGIO GENUINE PART" VESPA 125 PX -1R000146 - More informationQuantity required : 1 |
