Vehicle Exploded View - VESPA VESPA PX 125 2011-2015 VESPA

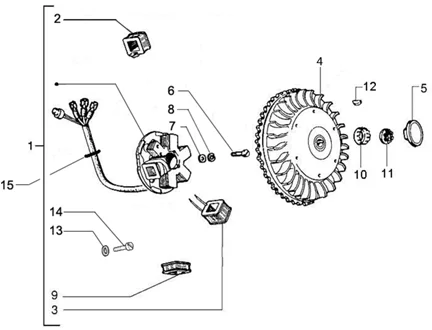

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
IGNITION STATOR "PIAGGIO GENUINE PART" 125 VESPA PX -497652-

1
P2R reference P2R reference 79597
Maker reference Maker reference 497652

IGNITION STATOR "PIAGGIO GENUINE PART" 125 VESPA PX -497652-

More information

Quantity required : 1
IGNITION STATOR "PIAGGIO GENUINE PART" 125 VESPA PX -642427-

1
P2R reference P2R reference 86376
Maker reference Maker reference 642427

IGNITION STATOR "PIAGGIO GENUINE PART" 125 VESPA PX -642427-

More information

Quantity required : 1
166657 - BOBINE

2
P2R reference P2R reference 74955
Maker reference Maker reference 166657

166657 - BOBINE

More information

Quantity required : 1
165791 - BOBINE

3
P2R reference P2R reference 74951
Maker reference Maker reference 165791

165791 - BOBINE

More information

Quantity required : 1
642426 - ROTOR

4
P2R reference P2R reference 86375
Maker reference Maker reference 642426

642426 - ROTOR

More information

Quantity required : 1
IGNITION ROTOR "PIAGGIO GENUINE PART" VESPA 125 PX -1794993-

4
P2R reference P2R reference 75060
Maker reference Maker reference 1794993

IGNITION ROTOR "PIAGGIO GENUINE PART" VESPA 125 PX -1794993-

More information

Quantity required : 1
166366 - COUVERCLE

5
P2R reference P2R reference 74953
Maker reference Maker reference 166366

166366 - COUVERCLE

More information

Quantity required : 1
SCREW - 5x12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585-

6
P2R reference P2R reference 65383
Maker reference Maker reference 0155855

SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585-

More information

Quantity required : 3
006965 - RONDELLE

7
P2R reference P2R reference 63837
Maker reference Maker reference 0069655

006965 - RONDELLE

More information

Quantity required : 3
003055 - RONDELLE

8
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055 - RONDELLE

More information

Quantity required : 3
193878 - BOBINE N 3 PIAGGIO

9
P2R reference P2R reference 65815
Maker reference Maker reference 193878

193878 - BOBINE N 3 PIAGGIO

More information

Quantity required : 1
012555 - RONDELLE FREIN S01255500

10
P2R reference P2R reference 65352
Maker reference Maker reference 0125555

012555 - RONDELLE FREIN S01255500

More information

Quantity required : 1
021112 - ECROU S02111200

11
P2R reference P2R reference 65600
Maker reference Maker reference 0211125

021112 - ECROU S02111200

More information

Quantity required : 1
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

12
P2R reference P2R reference 63721
Maker reference Maker reference 000267

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267-

More information

Quantity required : 1
003053 - RONDELLE

13
P2R reference P2R reference 63774
Maker reference Maker reference 0030535

003053 - RONDELLE

More information

Quantity required : 1
015737 - VIS S01573700

14
P2R reference P2R reference 65391
Maker reference Maker reference 0157375

015737 - VIS S01573700

More information

Quantity required : 1
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

15
P2R reference P2R reference 65742
Maker reference Maker reference 145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298-

More information

Quantity required : 1
