Vehicle Exploded View - DERBI VARIANT COURIER 50 VARIANT COURIER 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

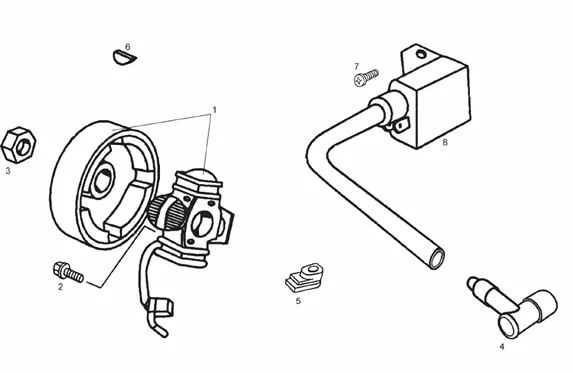

Moteur : 20 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_20.png)
1 |
00F03306011 - CTO.VOL.MAG.VARIANT (LEONELLI) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
018639 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
4 |
00G03301271 - PIPE DE BOUGIE More informationQuantity required : 1 |
||||||
|
5 |
00F03321281 - CAOUTCHUC PROTEC. FILS More informationQuantity required : 1 |
||||||
|
6 |
00G03300231 - CLAVETTE VOLANT ELECTRONIQUE More informationQuantity required : 1 |
||||||
|
8 |
00F03306171 - CTO.CONV.ELEC.VRNT (LEONELLI) More informationQuantity required : 1 |
