Vehicle Exploded View - DERBI VARIANT COURIER 50 VARIANT COURIER 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

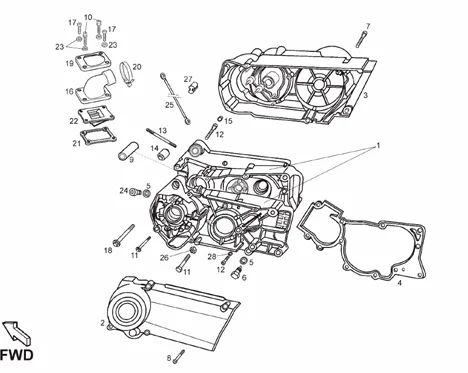

Moteur : 18 CARTERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_18.png)
1 |
863022 - CTO.CARTERS V.START (SUBC) More informationQuantity required : 1 |
||||||
|
2 |
00F03003201 - CACHE CARTER G. More informationQuantity required : 1 |
||||||
|
3 |
00F03007881 - R-SCTO.TAPA CARTER DR.V.98 More informationQuantity required : 1 |
||||||
|
4 |
00F03002031 - JOINT CARTERS MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/6/img/69506.jpg)
5 |
O'RING GASKET FOR OIL DRAIN PLUG "PIAGGIO GENUINE PART" 350 BEVERLY, X10/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847238- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/5/img/69505.jpg)
6 |
OIL DRAIN CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847237- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
7 |
323990 - TENDEUR More informationQuantity required : 1 |
||||||
|
8 |
00000004630 - VIS A TETE ALLEN 6M100X30. More informationQuantity required : 1 |
||||||
|
9 |
00F03010071 - ENTRETOISE SILEMBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.JPG)
10 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
|
10 |
1A000352 - BOULON M6 X 22 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
12 |
SCREW - MULTI PURPOSE M6X10 "PIAGGIO GENUINE PART" -319446- More informationQuantity required : 1 |
||||||
|
13 |
00F03000051 - GOUJON FIS. CYLINDRE More informationQuantity required : 1 |
||||||
|
14 |
00F02210711 - SILEMBLOC FIX. MOTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/8/img/69508.jpg)
15 |
CENTERING PIN FOR CRANKCASE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -847241- More informationQuantity required : 1 |
||||||
|
16 |
00F02504061 - BOQ.CARBURADOR V.SPORT CU.E2 More informationQuantity required : 1 |
||||||
|
17 |
00004062200 - VIS TETE ALLEN 6M100X22D912 More informationQuantity required : 1 |
||||||
|
19 |
00F05000261 - CARC.FIJ.BOQ.CARBUR.VRNT.COUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/3/9/img/64839.jpg)
20 |
00H03800451 - COLLIER More informationQuantity required : 1 |
||||||
|
21 |
00F02500811 - JOINT D'ADMISSION More informationQuantity required : 1 |
||||||
|
22 |
00F02500641 - BOITE A CLAPETS More informationQuantity required : 1 |
||||||
|
23 |
00H02500901 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
26 |
219277 - BOULON More informationQuantity required : 1 |
||||||
|
27 |
00F02902381 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/7/img/69507.jpg)
28 |
847239 - RONDELLE More informationQuantity required : 1 |
