Vehicle Exploded View - DERBI VARIANT COURIER 50 VARIANT COURIER 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

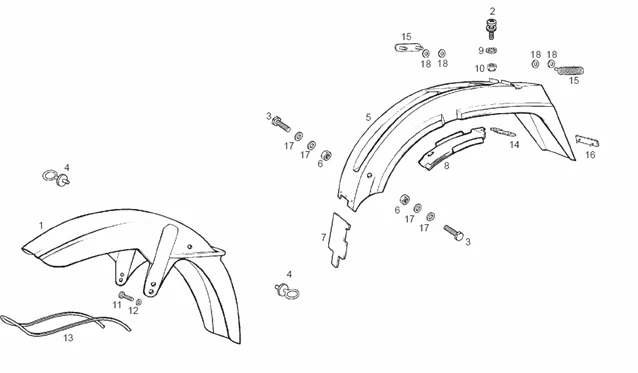

Châssis - parties plastiques - carrosseries : 5 GARDE-BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_5.png)
1 |
00F00704029 - GUARD.DT..V.COURR.ROJO CII E1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
2 |
SCREW - FOR COOLANT TANK (6X16) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H05900021 More informationQuantity required : 1 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/6/8/img/64668.jpg)
4 |
FRONT BRAKE CABLE FAIRLEAD "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX -00H02201591 More informationQuantity required : 1 |
||||||
|
5 |
00F00733127 - GUARDAB.TR.INY.ROJO CII More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
6 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
7 |
00F00701381 - SUPLEMTO.ANT.GUARDAB.VR.E2 More informationQuantity required : 1 |
||||||
|
8 |
00F00710341 - SUPL.GARDE BOUE AR. START More informationQuantity required : 1 |
||||||
|
9 |
BOULON S03105900 |
||||||
|
10 |
NUT - SAFETY NUT FOR CHAIN TENSIONER 6M100 "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX -00000023060- More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
12 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
|
13 |
00F00700591 - ENJOULIVER GARDE-BOUE AVANT More informationQuantity required : 1 |
||||||
|
14 |
00F04900011 - SUPPORT ARR. GARDE BOVE More informationQuantity required : 1 |
||||||
|
15 |
00G04400751 - CATADIOPTRIQUES LATERAL AMBRE More informationQuantity required : 1 |
||||||
|
16 |
00H04400751 - CATADIOPTRE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
17 |
WASHER (Ø6) "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00D01200171- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/8/4/4/img/69844.jpg)
18 |
WASHER FOR FAIRINGS Ø 5 STAINLESS "PIAGGIO GENUINE PART" APRILIA 50 RS/GILERA 50 SMT, RCR -861239- More informationQuantity required : 1 |
