Vehicle Exploded View - DERBI VARIANT COURIER 50 VARIANT COURIER 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

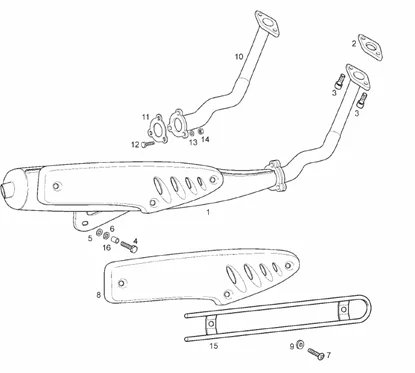

Moteur : 21 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_21.png)
1 |
00F03435011 - CTO.TUBO ESCAP.V.SPORT CUR.E2 More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/4/img/63564.jpg)
4 |
00000002840 - TOR.C/EXAG. 8M125X40.8.8/D-931 ZNB. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
5 |
00000031080 - ROND. PLATE MECANISEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/1/img/63731.jpg)
6 |
00034000802 - ZONDELLE EVENTAIL INT. D8 More informationQuantity required : 1 |
||||||
|
7 |
|
||||||
|
8 |
00F01804392 - R-PROTECT.SILENC.INOX..LA POS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
9 |
WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847226- More informationQuantity required : 1 |
||||||
|
10 |
00F03423011 - R-SCTO.TUBO ESCAPE VR-03 E1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/7/7/2/9/img/187729.jpg)
11 |
00G03400321 - JOINT FIX.SILENCIEUX D’ECHAP.H More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
12 |
018639 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
13 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
14 |
219277 - BOULON More informationQuantity required : 1 |
||||||
|
15 |
00F03401891 - R-SCTO.VARIL.PROT.TR.SIL.LAPOS More informationQuantity required : 1 |
||||||
|
16 |
00F04200601 - CASQ.SEPAR.FIJ.SIL.NGR.VRE2 More informationQuantity required : 1 |
