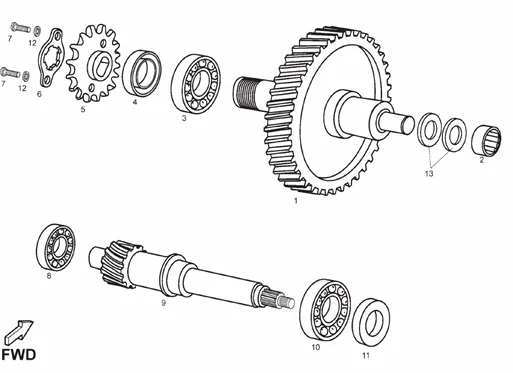

Moteur : 16 REDUCTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_16.png)
1 |
00F04004281 - ENGRANAGE More informationQuantity required : 1 |
||||||
|
2 |
501042 - CAGE AIGUILLE 2E COT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/2/img/69412.jpg)
4 |
GEARBOX OUTPUT SPROCKET O'RING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50-125 RX, SX, RS -847019- More informationQuantity required : 1 |
||||||
|
5 |
00F02804371 - PIGNON SORTIE CHANGEMENT VI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/1/img/64741.jpg)
6 |
STEERING LOCK WASHER FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" GILERA 50 RCR, SMT 1999>2005 -00H02810421- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/7/img/63567.jpg)
7 |
SCREW - FOR OUTPUT GEARBOX PINION "PIAGGIO GENUINE PART" APRILIA RS 50-125 2006>2018, RX-SX 2006>2016 -00000004510- More informationQuantity required : 1 |
||||||
|
9 |
00F02801301 - AXE VARIAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/1/img/71851.JPG)
12 |
AP8150284 - RONDELLE EVENT.EXT. More informationQuantity required : 1 |
||||||
|
13 |
00006128280 - RONDELLE More informationQuantity required : 1 |
