Vehicle Exploded View - DERBI VARIANT COURIER 50 VARIANT COURIER 2007 E2
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

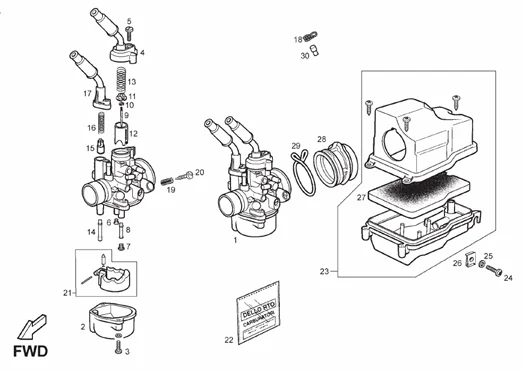

Moteur : 19 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1062/VARIANT_COURIER_2007_E2_19.png)
1 |
00F03217011 - CTO.CARBUR.V.SPORT COURIER E2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/2/2/img/69522.JPG)
2 |
847519 - CUVE More informationQuantity required : 1 |
||||||
|
3 |
00G03201091 - R-BOUL.SERG.VASE ESSENC. More informationQuantity required : 1 |
||||||
|
4 |
00F03201231 - R-TAPA CAMARA MEZCLA VRNT E2 More informationQuantity required : 1 |
||||||
|
5 |
00G03200061 - R-BOUL.SER.COUV.CHAMBRE MEL More informationQuantity required : 1 |
||||||
|
6 |
00H04101181 - R-GICLEUR MINIMUM. D.32 SE More informationQuantity required : 1 |
||||||
|
7 |
00F03205031 - R-SURTIDOR MAX.48 VRNT.E2 More informationQuantity required : 1 |
||||||
|
8 |
CM106217 - MELANGEUR 211-GA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/0/1/img/73101.jpg)
9 |
NEEDLE FOR CARB "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2006>/APRILIA 50 SX, RX, RS 2006> -CM107514- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/4/img/66204.jpg)
10 |
NEEDLE CIRCLIP FOR CARB "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC -288872- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/0/5/img/66205.jpg)
11 |
CONICAL PIN CLIP "PIAGGIO GENUINE PART" COMMON TO THE SCOOTER 50 CC RANGE -288873- More informationQuantity required : 1 |
||||||
|
12 |
AP8206898 - SOUPAPE GAZ More informationQuantity required : 1 |
||||||
|
13 |
AP8206908 - RESS.RAPP.SOUP.GAZ More informationQuantity required : 1 |
||||||
|
14 |
00H03201481 - GICLEUR DE RALENTI More informationQuantity required : 1 |
||||||
|
15 |
00F03211711 - R-VALVULA CABLE AIRE VRNT E2 More informationQuantity required : 1 |
||||||
|
16 |
00F03200721 - R- MUELLE VALVULA AIRE VRNT E2 More informationQuantity required : 1 |
||||||
|
17 |
00F04100941 - R-TAPA VALVULA STARTER VRNT E2 More informationQuantity required : 1 |
||||||
|
18 |
00D03700131 - CRAMPON ELASTIQUE TUBE ESSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/4/img/64074.jpg)
19 |
00G03200721 - R-RESSORT REG.AIR MIN. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/7/5/img/64075.jpg)
20 |
00G03200731 - R-VIS REG.AIR MIN. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/5/img/66625.jpg)
21 |
CARB FLOAT BOWL - "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -482916- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/7/2/img/66972.jpg)
22 |
DELL'ORTO CARB GASKET SET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -498409- More informationQuantity required : 1 |
||||||
|
23 |
00F00501721 - CTO.CAJA FILTRO V.SPORT CUR.E2 More informationQuantity required : 1 |
||||||
|
24 |
00012151500 - VIS A TETE RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
25 |
MULTI-PURPOSE WASHER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -847181- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
26 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462- More informationQuantity required : 1 |
||||||
|
27 |
00F03202251 - ESPUMA FILTR.AIRE V.SPORT C.E2 More informationQuantity required : 1 |
||||||
|
28 |
00F03201261 - MANGUITO ADMISN.V.SPORT.CUR.E2 More informationQuantity required : 1 |
||||||
|
29 |
00F06300581 - MUELLE FIJ.MANGU.ADM.V.COURE2 More informationQuantity required : 1 |
||||||
|
30 |
00F04101981 - BOUCHON More informationQuantity required : 1 |
