Vehicle Exploded View - MOTO-GUZZI V65 650 Custom 650 1982-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

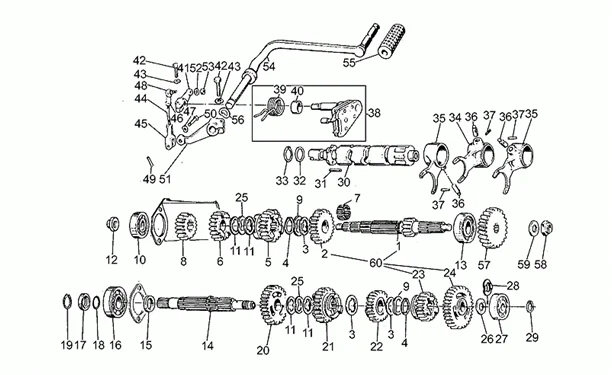

Moteur : 34.18 BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/529/V65_Custom_650_1982-1985_34.18.PNG)
2 |
GU19212061 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
3 |
GU19215460 - RONDELLE EVENTAIL More informationQuantity required : 3 |
||||||
|
4 |
GU90271127 - JONC D ARRET More informationQuantity required : 2 |
||||||
|
5 |
GU19211861 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
6 |
GU19211460 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
7 |
GU92251023 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
8 |
GU19211361 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
9 |
GU19218062 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/8/img/132408.jpg)
10 |
GEARBOX BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI (OLD RANGE) 17X40X17,5 -GU92218417- More informationQuantity required : 1 |
||||||
|
11 |
GU19214660 - RONDELLE D'APPUI More informationQuantity required : 4 |
||||||
|
12 |
GU10054100 - ECROU More informationQuantity required : 1 |
||||||
|
13 |
GU92230320 - ROULEMENT AP 20X37X17 More informationQuantity required : 1 |
||||||
|
14 |
GU19213661 - ARBRE SECONDAIRE More informationQuantity required : 1 |
||||||
|
15 |
GU19212900 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/8/img/132388.jpg)
16 |
BEARING (20X47X14) FOR TIMING SYSTEM "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92201220- More informationQuantity required : 1 |
||||||
|
17 |
GU19213720 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/3/img/132223.jpg)
18 |
GASKET RING- BEVEL GEAR (18,77X1,78) "PIAGGIO GENUINE PART" MOTO GUZZI -GU90706188- More informationQuantity required : 1 |
||||||
|
19 |
GU90271121 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
20 |
GU23214571 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
21 |
GU19214860 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
22 |
GU19215161 - ENGRENAGE More informationQuantity required : 1 |
||||||
|
25 |
GU19218061 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/1/9/img/132419.jpg)
27 |
GEARBOX BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA -GU92234716- More informationQuantity required : 1 |
||||||
|
29 |
GU90271117 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
30 |
GU19234420 - ARBRE More informationQuantity required : 1 |
||||||
|
31 |
GU19234600 - TIGE More informationQuantity required : 4 |
||||||
|
33 |
GU90271020 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
|
34 |
GU19231220 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
35 |
GU19231020 - FOURCHETTE More informationQuantity required : 2 |
||||||
|
36 |
GU92297909 - ROULEAU More informationQuantity required : 3 |
||||||
|
37 |
GU95520316 - GOUPILLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/6/img/130136.jpg)
39 |
PRIMARY GEARBOX SELECTOR SPRING "PIAGGIO GENUINE PART" COMMON TO MOTO-GUZZI RANGE -GU28238261- More informationQuantity required : 1 |
||||||
|
39 |
GU61238200 - RESSORT More informationQuantity required : 1 |
||||||
|
40 |
GU91182010 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
40 |
GU20208520 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
41 |
GU19258220 - LEVIER COMM.PRESEL. More informationQuantity required : 1 |
||||||
|
42 |
GU98052325 - VIS More informationQuantity required : 2 |
||||||
|
44 |
GU18257950 - TIRANT More informationQuantity required : 1 |
||||||
|
45 |
GU12626800 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
46 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
47 |
GU95129110 - RONDELLE More informationQuantity required : 1 |
||||||
|
48 |
GU32258110 - ROTULE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.JPG)
49 |
GU95500222 - GOUPILLE More informationQuantity required : 1 |
||||||
|
50 |
GU95770265 - GOUPILLE More informationQuantity required : 1 |
||||||
|
51 |
GU19256920 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
52 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 1 |
||||||
|
53 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
54 |
GU19250900 - PEDALE DE SELECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/4/5/img/129245.jpg)
55 |
GU14251001 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
56 |
GU95129260 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
||||||
|
58 |
GU10054100 - ECROU More informationQuantity required : 1 |
||||||
|
59 |
GU39238100 - RONDELLE D'APPUI More informationQuantity required : 1 |
