Vehicle Exploded View - MOTO-GUZZI V65 650 Custom 650 1982-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

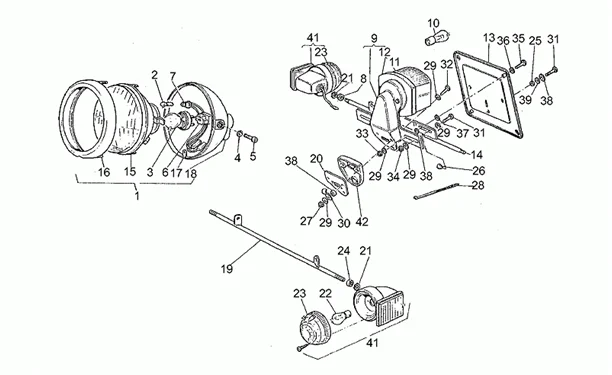

Chassis : 33.05 FEU AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/529/V65_Custom_650_1982-1985_33.05.PNG)
1 |
GU28740533 - FEU AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
2 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 1 |
||||||
|
3 |
GU93450231 - LAMPE (OU AMPOULE) 12V 45/40W More informationQuantity required : 1 |
||||||
|
7 |
GU17740405 - PORTE AMPOULE More informationQuantity required : 1 |
||||||
|
8 |
GU19742050 - ECROU More informationQuantity required : 2 |
||||||
|
10 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 1 |
||||||
|
13 |
GU10474600 - PLAQUE PORT.PL.DE PO More informationQuantity required : 1 |
||||||
|
14 |
GU18753501 - SUPP.CLIGN.ET PL.POL More informationQuantity required : 1 |
||||||
|
15 |
GU19740455 - GROUPE OPTIQUE More informationQuantity required : 1 |
||||||
|
16 |
GU19740454 - CADRE PHARE More informationQuantity required : 1 |
||||||
|
18 |
GU19740404 - COUVERCLE More informationQuantity required : 1 |
||||||
|
20 |
GU10475900 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/8/0/img/129180.jpg)
21 |
GU14018400 - RONDELLE 10,5X21X1 More informationQuantity required : 4 |
||||||
|
24 |
GU92602411 - ECROU More informationQuantity required : 2 |
||||||
|
25 |
GU92630106 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
27 |
GU92630106 - ECROU M6X1 More informationQuantity required : 3 |
||||||
|
28 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 10 |
||||||
|
29 |
GU95000206 - RONDELLE More informationQuantity required : 6 |
||||||
|
30 |
GU93301315 - GUIDE CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
31 |
GU98084316 - VIS M6X16 More informationQuantity required : 3 |
||||||
|
32 |
GU98054325 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.JPG)
33 |
GU92630105 - ECROU More informationQuantity required : 2 |
||||||
|
34 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
|
35 |
GU98054220 - VIS More informationQuantity required : 2 |
||||||
|
36 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.JPG)
37 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 4 |
||||||
|
38 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 9 |
||||||
|
39 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
