Vehicle Exploded View - MOTO-GUZZI V65 650 Custom 650 1982-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

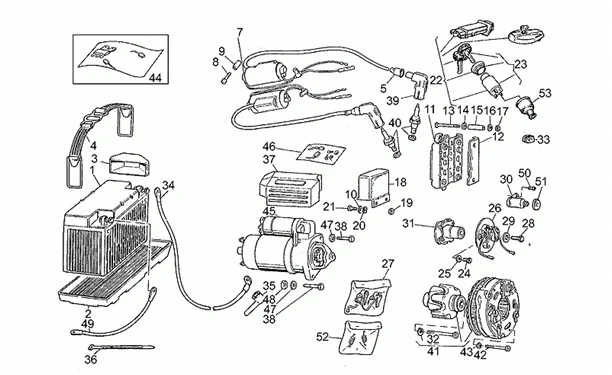

Chassis : 33.01 BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/529/V65_Custom_650_1982-1985_33.01.PNG)
2 |
GU14707000 - PLATEAU DE BATTERIE More informationQuantity required : 1 |
||||||
|
3 |
GU14705350 - COIN BATTERIE More informationQuantity required : 1 |
||||||
|
4 |
GU19704800 - ETRIER COLLIER BATT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
5 |
GU14717600 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/5/5/img/131255.jpg)
7 |
IGNITION COIL - HIGH TENSION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, STRADA, TARGA, V35, V50, V65, V75, -GU31716560- More informationQuantity required : 2 |
||||||
|
8 |
GU98620245 - VIS M5X45 More informationQuantity required : 4 |
||||||
|
9 |
GU91180721 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
10 |
GU95000206 - RONDELLE More informationQuantity required : 2 |
||||||
|
12 |
GU61704200 - PROTECTION REDRESS. More informationQuantity required : 1 |
||||||
|
13 |
GU98052245 - VIS More informationQuantity required : 4 |
||||||
|
14 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 2 |
||||||
|
15 |
GU91180627 - ENTRETOISE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.JPG)
16 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 4 |
||||||
|
17 |
GU92602205 - ECROU More informationQuantity required : 4 |
||||||
|
19 |
GU92602206 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
20 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 2 |
||||||
|
21 |
GU98054312 - VIS More informationQuantity required : 2 |
||||||
|
23 |
GU31735360 - BLOC DEMARREUR More informationQuantity required : 1 |
||||||
|
25 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
|
26 |
GU27708520001 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/3/img/129683.jpg)
27 |
IGNITION BREAKER "PIAGGIO GENUINE PART" MOTO-GUZZI V35, V50, V65 -GU19709620 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
28 |
GU98084314 - VIS M6X14 More informationQuantity required : 1 |
||||||
|
30 |
GU19708620 - CONDENSATEUR More informationQuantity required : 2 |
||||||
|
31 |
GU19708480 - AVANCE A L ALLUMAGE More informationQuantity required : 1 |
||||||
|
32 |
GU14712459 - VIS More informationQuantity required : 1 |
||||||
|
33 |
GU19007700 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
34 |
GU19748000 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
35 |
GU19707100 - CAPUCHON More informationQuantity required : 2 |
||||||
|
36 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 20 |
||||||
|
37 |
GU19733350 - PROTECTION DEMMAR More informationQuantity required : 1 |
||||||
|
38 |
GU98052435 - VIS M8X35 More informationQuantity required : 2 |
||||||
|
39 |
GU14717400 - PIPE BOUGIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
40 |
SPARK PLUG NGK B8ES "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR, MOTO-GUZZI V65, NEVADA, STRADA -847085- More informationQuantity required : 2 |
||||||
|
41 |
GU17712400 - ALTERNATEUR More informationQuantity required : 1 |
||||||
|
42 |
GU98620245 - VIS M5X45 More informationQuantity required : 3 |
||||||
|
43 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
44 |
GU17712454 - PORTE-BALAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/4/4/img/130944.jpg)
45 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" VALEO FOR MOTO-GUZZI -GU30730711- More informationQuantity required : 1 |
||||||
|
46 |
GU14730570 - KIT DE DEMARREUR More informationQuantity required : 1 |
||||||
|
47 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
48 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
49 |
GU19748400 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
51 |
GU19708720 - CAPUCHON More informationQuantity required : 2 |
||||||
|
53 |
GU19741336 - CAPUCHON More informationQuantity required : 1 |
