Vehicle Exploded View - MOTO-GUZZI V65 650 Custom 650 1982-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

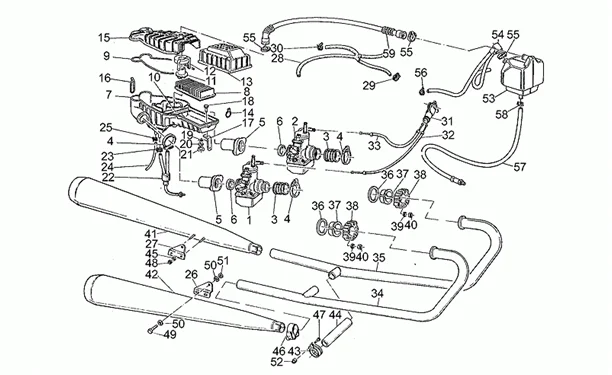

Chassis : 33.17 ALIMENTATION-ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/529/V65_Custom_650_1982-1985_33.17.PNG)
3 |
CARB MANIFOLD -GU31114383- More informationQuantity required : 2 |
||||||
|
4 |
GU93305032 - COLLIER 32X52X8 More informationQuantity required : 8 |
||||||
|
5 |
GU19114460 - MANCHON PRISE D'AIR More informationQuantity required : 2 |
||||||
|
8 |
GU28113650 - FILTRE AIR More informationQuantity required : 1 |
||||||
|
10 |
GU19112960 - SUPPORT More informationQuantity required : 1 |
||||||
|
12 |
GU19111160 - COUVERCLE LAT CULASS More informationQuantity required : 1 |
||||||
|
14 |
GU31110715 - RESSORT COURT More informationQuantity required : 3 |
||||||
|
17 |
GU31114165 - SUPPORT FILTRE More informationQuantity required : 1 |
||||||
|
18 |
GU98054214 - VIS More informationQuantity required : 1 |
||||||
|
19 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 1 |
||||||
|
20 |
GU95000205 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
GU92670305 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
23 |
CM002907 - COLLIER More informationQuantity required : 2 |
||||||
|
24 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
|
25 |
GU35108450 - COLLIER More informationQuantity required : 1 |
||||||
|
26 |
GU23128660 - PLAQUE More informationQuantity required : 1 |
||||||
|
29 |
CM002907 - COLLIER More informationQuantity required : 2 |
||||||
|
30 |
GU61108500 - COLLIER D9 More informationQuantity required : 2 |
||||||
|
31 |
GU23133100 - STARTER More informationQuantity required : 1 |
||||||
|
32 |
GU19133560 - CABLE DE STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
36 |
CYLINDER HEAD OUTLET GASKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65 -GU19025280- More informationQuantity required : 2 |
||||||
|
37 |
GU61025400 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
38 |
GU19121050 - FLASQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
39 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
40 |
GU92701062 - ECROU More informationQuantity required : 4 |
||||||
|
43 |
GU61126920 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
45 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
46 |
GU30123430 - COLLIER More informationQuantity required : 2 |
||||||
|
47 |
GU98692325 - VIS TCEI M6X25 More informationQuantity required : 2 |
||||||
|
48 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
49 |
GU98054535 - VIS More informationQuantity required : 2 |
||||||
|
50 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 4 |
||||||
|
51 |
GU92602410 - ECROU More informationQuantity required : 2 |
||||||
|
52 |
GU61127220 - BAGUE More informationQuantity required : 2 |
||||||
|
55 |
GU93305018 - COLLIER More informationQuantity required : 3 |
||||||
|
56 |
CM002907 - COLLIER More informationQuantity required : 2 |
||||||
|
57 |
GU27159360 - RENIFLARD More informationQuantity required : 1 |
||||||
|
58 |
CM002907 - COLLIER More informationQuantity required : 1 |
