Vehicle Exploded View - MOTO-GUZZI V65 650 Custom 650 1982-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

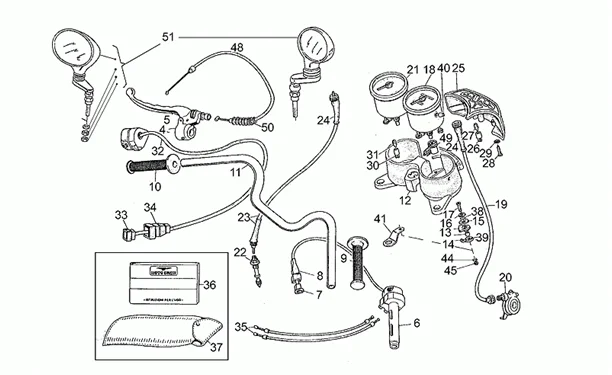

Chassis : 33.04 T. DE BORD-COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/529/V65_Custom_650_1982-1985_33.04.PNG)
4 |
GU19605501 - COMMANDE LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
7 |
GU17756160 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
8 |
GU17756060 - CAPUCHON More informationQuantity required : 1 |
||||||
|
9 |
GU65603500 - POIGNEE DR. More informationQuantity required : 1 |
||||||
|
10 |
GU65603000 - POIGNEE GC. More informationQuantity required : 1 |
||||||
|
11 |
GU29600351 - GUIDON More informationQuantity required : 1 |
||||||
|
12 |
GU19501500 - SUPPORT INSTRUMENTS More informationQuantity required : 1 |
||||||
|
15 |
GU95090142 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
GU18577850 - RONDELLE More informationQuantity required : 2 |
||||||
|
17 |
GU98270641 - VIS More informationQuantity required : 2 |
||||||
|
19 |
GU19760480 - CABLE D ENTRAIN.CKM More informationQuantity required : 1 |
||||||
|
20 |
GU39762501 - RENVOI COMPTEUR KM More informationQuantity required : 1 |
||||||
|
21 |
GU17767260 - COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
22 |
GU14769200 - RENVOI Z=14 More informationQuantity required : 1 |
||||||
|
23 |
GU19768180 - TRANSMISSION COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
24 |
GU17762200 - GAINE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/7/0/5/img/129705.jpg)
26 |
BULB HOLDER - DASHBOARD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU19768680- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
27 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634- More informationQuantity required : 8 |
||||||
|
29 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
31 |
294131 - AMPOULE 12V 3W More informationQuantity required : 2 |
||||||
|
32 |
GU23738001 - DEVIATEUR FEUX GCHE More informationQuantity required : 1 |
||||||
|
33 |
GU61740551 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
34 |
GU35755780 - CAPUCHON More informationQuantity required : 1 |
||||||
|
35 |
GU19117595 - CABLE GAZ More informationQuantity required : 2 |
||||||
|
38 |
GU45212400 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
39 |
GU91180721 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
40 |
GU19762810 - POUSSOIR RAZ More informationQuantity required : 1 |
||||||
|
44 |
GU95000206 - RONDELLE More informationQuantity required : 1 |
||||||
|
45 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
|
48 |
GU23093080 - TRANSMISSION More informationQuantity required : 1 |
||||||
|
49 |
GU17768360 - RENVOI 90° More informationQuantity required : 2 |
||||||
|
50 |
GU17093850 - SOUFFLET More informationQuantity required : 1 |
