Vehicle Exploded View - MOTO-GUZZI V65 650 Custom 650 1982-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

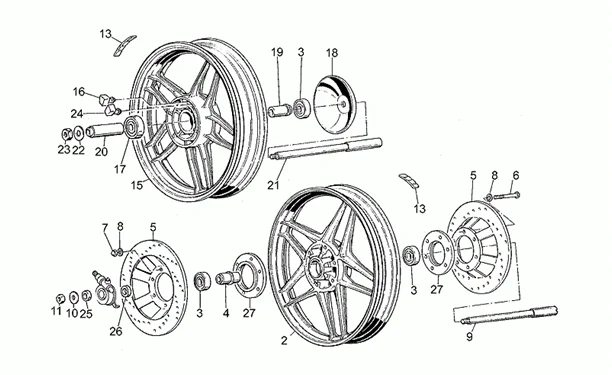

Chassis : 33.12 ROUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/529/V65_Custom_650_1982-1985_33.12.PNG)
2 |
GU23610380 - ROUE AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/0/img/132400.jpg)
3 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, V35, V60, V65 -GU92204217 More informationQuantity required : 3 |
||||||
|
4 |
GU19615335 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
5 |
GU31613380 - DISQUE FREIN More informationQuantity required : 2 |
||||||
|
6 |
GU98052490 - VIS More informationQuantity required : 6 |
||||||
|
7 |
|
||||||
|
8 |
GU95004208 - RONDELLE More informationQuantity required : 12 |
||||||
|
9 |
GU62614120 - AXE DE ROUE AV. More informationQuantity required : 1 |
||||||
|
10 |
GU95004217 - RONDELLE 17X27X2 More informationQuantity required : 1 |
||||||
|
11 |
GU92602516 - ECROU M16X1,5 More informationQuantity required : 1 |
||||||
|
13 |
GU14616150 - CONTREPOIDS More informationQuantity required : 2 |
||||||
|
15 |
|
||||||
|
16 |
GU19632502 - JOINT EN CAOUTCHOUC G. More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/1/img/132401.jpg)
17 |
WHEEL BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI V50, V65, 750 V7, DAYTONA, NEVADA, BREVA, 1100 SPORT -GU92204218 More informationQuantity required : 1 |
||||||
|
18 |
GU19636400 - PROTECTION More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
|
20 |
|
||||||
|
21 |
GU23633380 - AXE DE ROUE AR More informationQuantity required : 1 |
||||||
|
22 |
GU14634400 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
GU92602316 - ECROU M6X1,5 More informationQuantity required : 1 |
||||||
|
24 |
GU19632501 - C/C AMMORT TRANS More informationQuantity required : 6 |
||||||
|
25 |
GU62616320 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
26 |
|
||||||
|
27 |
GU14611255 - FLASQUE More informationQuantity required : 2 |
