Vehicle Exploded View - MOTO-GUZZI V50 500 PA 500 1992-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

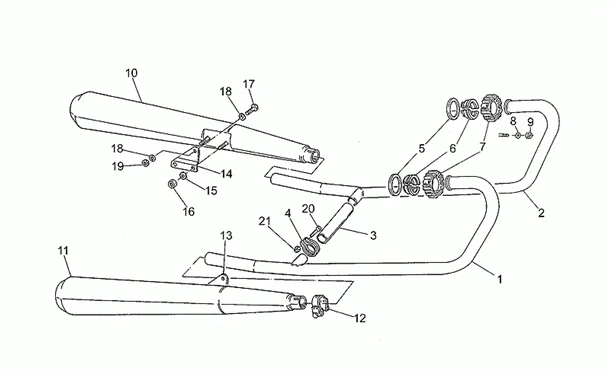

Chassis : 33.33 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_33.33.PNG)
1 |
GU19120707 - TUYAU D ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
GU19121135 - TUYAU DE LIAISON More informationQuantity required : 1 |
||||||
|
4 |
GU61126920 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
5 |
CYLINDER HEAD OUTLET GASKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65 -GU19025280- More informationQuantity required : 2 |
||||||
|
6 |
GU19025460 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
7 |
GU19121050 - FLASQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
8 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
9 |
GU92701062 - ECROU More informationQuantity required : 4 |
||||||
|
10 |
GU19122936 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
11 |
GU19123036 - SILENCIEUX D More informationQuantity required : 1 |
||||||
|
12 |
GU19123435 - COLLIER More informationQuantity required : 2 |
||||||
|
13 |
GU19128660 - PLAQUE More informationQuantity required : 1 |
||||||
|
14 |
GU19128760 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
15 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
16 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
17 |
GU98054535 - VIS More informationQuantity required : 2 |
||||||
|
18 |
GU95022110 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
19 |
GU92602410 - ECROU More informationQuantity required : 2 |
||||||
|
20 |
GU98692325 - VIS TCEI M6X25 More informationQuantity required : 2 |
||||||
|
21 |
GU61127220 - BAGUE More informationQuantity required : 2 |
