Vehicle Exploded View - MOTO-GUZZI V50 500 PA 500 1992-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

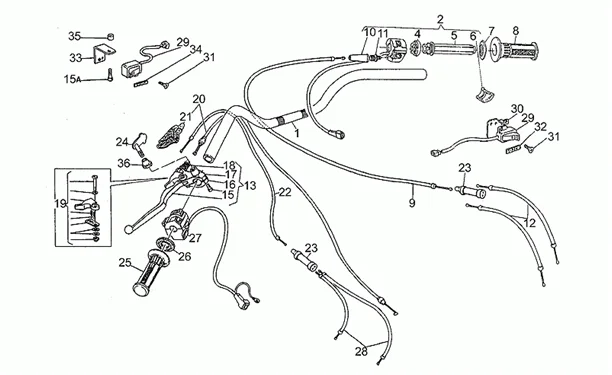

Chassis : 33.16 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_33.16.PNG)
1 |
Guidon |
||||||
|
2 |
GU19603480 - COMANDO GAS More informationQuantity required : 1 |
||||||
|
4 |
GU27604415 - BLOC More informationQuantity required : 1 |
||||||
|
5 |
Corps mobile |
||||||
|
6 |
GU27604515 - BLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/3/4/img/130034.jpg)
7 |
GU27603620 - BAGUE More informationQuantity required : 1 |
||||||
|
8 |
GU19603515 - POIGNEE More informationQuantity required : 1 |
||||||
|
9 |
GU27117536 - CABLE COM GAZ More informationQuantity required : 1 |
||||||
|
10 |
GU27117615 - CAPUCHON More informationQuantity required : 1 |
||||||
|
11 |
GU27603715 - VIS EMBRAYAGE More informationQuantity required : 1 |
||||||
|
12 |
GU23117770 - CABLE DU GAZ More informationQuantity required : 2 |
||||||
|
13 |
Levier embrayage complet |
||||||
|
15 |
GU27601215 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU98612225 - VIS More informationQuantity required : 1 |
||||||
|
16 |
GU27601015 - DEMI-COLLIER More informationQuantity required : 1 |
||||||
|
17 |
GU27601815 - CAVALIER LEVIER EMBR More informationQuantity required : 1 |
||||||
|
18 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
18 |
AP8118348 - REGLAGE LEVIER EMBRAYAGE; More informationQuantity required : 1 |
||||||
|
19 |
Levier |
||||||
|
20 |
GU27093022 - CABLE COM.EMBRAYAGE More informationQuantity required : 1 |
||||||
|
20 |
GU27093023 - CABLE EMBRAYAGE POLIZIA More informationQuantity required : 1 |
||||||
|
21 |
GU27663815 - PROTECTION More informationQuantity required : 1 |
||||||
|
22 |
GU27132815 - CABLE DE STARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/5/img/130865.jpg)
23 |
GU30607910 - DEDOUBLEREUR More informationQuantity required : 2 |
||||||
|
24 |
GU19504025 - SUPPORT COMM.RADIO More informationQuantity required : 1 |
||||||
|
25 |
GU19603015 - POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/3/2/img/130032.jpg)
26 |
GU27603120 - BAGUE More informationQuantity required : 1 |
||||||
|
27 |
Déviateur feux gche |
||||||
|
28 |
GU27133515 - CABLE DE STARTER More informationQuantity required : 2 |
||||||
|
29 |
GU19756315 - POUSSOIR More informationQuantity required : 2 |
||||||
|
30 |
GU19756725 - PLAQUE More informationQuantity required : 1 |
||||||
|
31 |
GU99220207 - VIS More informationQuantity required : 2 |
||||||
|
32 |
DECALCOMANIE D |
||||||
|
33 |
PLAQUE |
||||||
|
34 |
DECALCOMANIE D |
||||||
|
35 |
GU91180607 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
36 |
ECROU |
