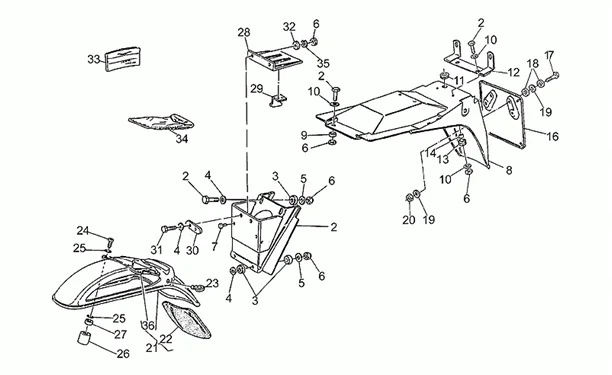

Chassis : 33.17 GARDE-BOUE - ACCESS.

Garde-boue - Access.

Search

1

	P2R reference
	Maker reference	GU20438720

PARE BOUE AR.

1

	P2R reference
	Maker reference	GU23438690

PARE BOUE AR.

2

	P2R reference	132889
	Maker reference	GU98054320

GU98054320 - VIS M6X20

More information

Quantity required : 6

3

	P2R reference	132566
	Maker reference	GU93110060

GU93110060 - CAOUTCHOUC

More information

Quantity required : 8

4

	P2R reference	132651
	Maker reference	GU95000206

GU95000206 - RONDELLE

More information

Quantity required : 6

5

	P2R reference	132713
	Maker reference	GU95100141

GU95100141 - RONDELLE 6,5X20X2

More information

Quantity required : 4

6

	P2R reference	73546
	Maker reference	GU92630106

GU92630106 - ECROU M6X1

More information

Quantity required : 10

7

	P2R reference	129680
	Maker reference	GU19705900

GU19705900 - TAMPON

More information

Quantity required : 2

8

	P2R reference
	Maker reference	GU19437015

GARDE-BOUE AR.

9

	P2R reference	164670
	Maker reference	GU93110082

GU93110082 - CAOUTCHOUC

More information

Quantity required : 2

10

	P2R reference	73553
	Maker reference	GU95008206

GU95008206 - RONDELLE 6,15X11X0,8

More information

Quantity required : 8

11

	P2R reference
	Maker reference	GU915510925

12

	P2R reference
	Maker reference	GU27474385

SUPPORT

13

	P2R reference	132361
	Maker reference	GU91551086

GU91551086 - CAOUTCHOUC

More information

Quantity required : 2

14

	P2R reference	132306
	Maker reference	GU91180607

GU91180607 - ENTRETOISE

More information

Quantity required : 2

16

	P2R reference
	Maker reference	GU14474650

Porte-plaque

17

	P2R reference	165088
	Maker reference	GU98052220

GU98052220 - VIS

More information

Quantity required : 4

18

	P2R reference
	Maker reference	GU907160575

19

	P2R reference	132703
	Maker reference	GU95100059

GU95100059 - RONDELLE 5,25X14X1,5

More information

Quantity required : 8

20

	P2R reference	132500
	Maker reference	GU92630105

GU92630105 - ECROU

More information

Quantity required : 4

21

	P2R reference
	Maker reference	GU274344201

GARDE-BOUE AV.

21

	P2R reference
	Maker reference	GU31434382

GARDE-BOUE AV.

21

	P2R reference	131987
	Maker reference	GU89000253

GU89000253 - GARDE-BOUE AV. BLEU

More information

Quantity required : 1

22

	P2R reference	165013
	Maker reference	GU27436920

GU27436920 - PARE BOUE AR.

More information

Quantity required : 1

23

	P2R reference	130264
	Maker reference	GU28659740

GU28659740 - OEILLET

More information

Quantity required : 1

24

	P2R reference	164835
	Maker reference	GU98230845

GU98230845 - VIS

More information

Quantity required : 4

25

	P2R reference	132211
	Maker reference	GU90706092

GU90706092 - JOINT TORIQUE

More information

Quantity required : 8

26

	P2R reference
	Maker reference	GU31436415

Entretoise

27

	P2R reference	130147
	Maker reference	GU28436460

GU28436460 - DOUILLE

More information

Quantity required : 4

28

	P2R reference	165266
	Maker reference	GU23439010

GU23439010 - SUPPORT

More information

Quantity required : 1

29

	P2R reference	165267
	Maker reference	GU23438510

GU23438510 - PLAQUE

More information

Quantity required : 2

30

	P2R reference
	Maker reference	GU234392105

31

	P2R reference	132887
	Maker reference	GU98054312

GU98054312 - VIS

More information

Quantity required : 2

32

	P2R reference	132706
	Maker reference	GU95100118

GU95100118 - RONDELLE 6,2X18X1

More information

Quantity required : 2

33

	P2R reference
	Maker reference	GU199000155

34

	P2R reference
	Maker reference	GU28929940

TROUSSE OUTILS

35

	P2R reference
	Maker reference	GU95021106

Rondelle évent.

36

	P2R reference
	Maker reference	GU27436605

PLAQUE
