Vehicle Exploded View - MOTO-GUZZI V50 500 PA 500 1992-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

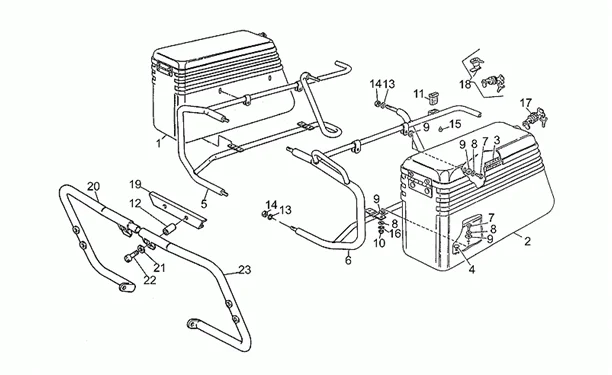

Chassis : 33.02 SIDE CASES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_33.02.PNG)
2 |
GU23485790 - SACOCHE More informationQuantity required : 1 |
||||||
|
2 |
GU23485790003 - SACOCHE More informationQuantity required : 1 |
||||||
|
2 |
GU28485745 - SACOCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
4 |
GU19705900 - TAMPON More informationQuantity required : 8 |
||||||
|
5 |
GU28485045 - PARE-CHOC More informationQuantity required : 1 |
||||||
|
6 |
GU28486545 - PARE-CHOC More informationQuantity required : 1 |
||||||
|
7 |
GU98054320 - VIS M6X20 More informationQuantity required : 12 |
||||||
|
8 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 16 |
||||||
|
9 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 24 |
||||||
|
10 |
GU92602206 - ECROU More informationQuantity required : 8 |
||||||
|
11 |
GU28584845 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
13 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 6 |
||||||
|
14 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 6 |
||||||
|
15 |
GU93180706 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
17 |
GU28489945 - SERRURE AVEC CLES More informationQuantity required : 2 |
||||||
|
23 |
GU19450425 - PARE-CHOC More informationQuantity required : 1 |
