Vehicle Exploded View - MOTO-GUZZI V50 500 PA 500 1992-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

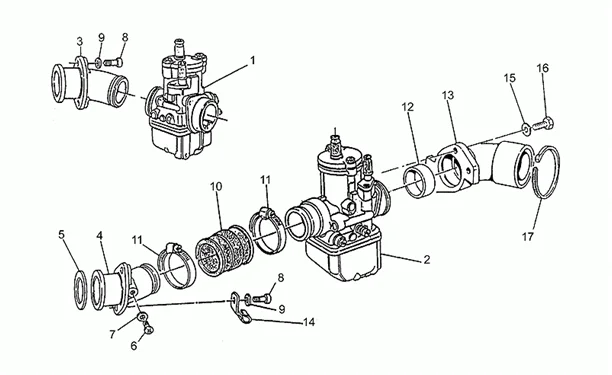

Chassis : 33.27 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_33.27.PNG)
1 |
GU19112680 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
2 |
GU19112681 - CARBURATEUR GAUCHE PHBH 28 BS More informationQuantity required : 1 |
||||||
|
3 |
GU19115080 - PIPE ADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/2/5/img/129525.JPG)
5 |
GU19115580 - JOINT More informationQuantity required : 2 |
||||||
|
6 |
GU98310610 - VIS More informationQuantity required : 2 |
||||||
|
7 |
GU95100116 - RONDELLE More informationQuantity required : 2 |
||||||
|
8 |
GU98822325 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
9 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
10 |
CARB MANIFOLD -GU31114383- More informationQuantity required : 2 |
||||||
|
11 |
GU93305032 - COLLIER 32X52X8 More informationQuantity required : 4 |
||||||
|
13 |
GU19114480 - COLLECTEUR More informationQuantity required : 2 |
||||||
|
14 |
GU19718000 - COLLIER More informationQuantity required : 2 |
||||||
|
15 |
GU95004205 - RONDELLE More informationQuantity required : 4 |
||||||
|
16 |
GU98054214 - VIS More informationQuantity required : 4 |
||||||
|
17 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 2 |
