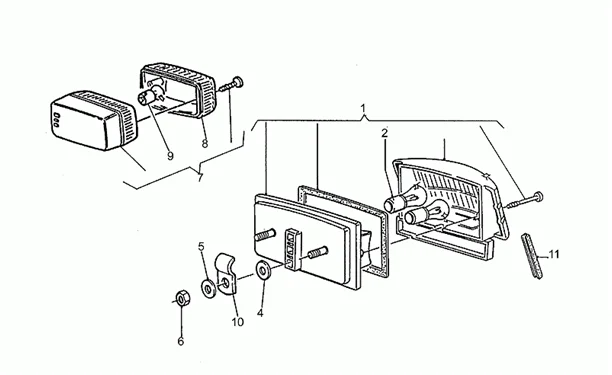

Chassis : 33.08 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/528/V50_PA_500_1992-2001_33.08.PNG)
2 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W More informationQuantity required : 2 |
||||||
|
4 |
GU93110060 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
6 |
GU92630206 - ECROU M6X1 More informationQuantity required : 3 |
||||||
|
7 |
GU28751647 - CLIGNOTANT More informationQuantity required : 2 |
||||||
|
8 |
GU28753747 - CABOCHON More informationQuantity required : 2 |
||||||
|
9 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
10 |
GU933011755 - CAVALIER More informationQuantity required : 1 |
