Vehicle Exploded View - MOTO-GUZZI V10 1000 V 10 Centauro 1000 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

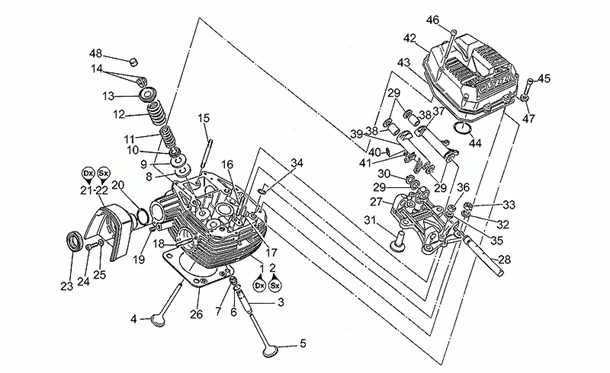

Moteur : 34.45 CULASSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/920/V_10_Centauro_1000_1997-1999_34.45.png)
1 |
GU30022145 - TETE CYLINDRE D More informationQuantity required : 1 |
||||||
|
3 |
GU30036800 - GUIDE SOUPAPE More informationQuantity required : 8 |
||||||
|
4 |
GU30036001 - VALVOLA ASP. More informationQuantity required : 4 |
||||||
|
5 |
GU30036101 - VALVOLA SCARICO More informationQuantity required : 4 |
||||||
|
6 |
GU90353024 - ANNEAU ELASTIQUE More informationQuantity required : 8 |
||||||
|
7 |
GU30037800 - JOINT SPI More informationQuantity required : 8 |
||||||
|
8 |
GU30037201 - ENTRETOISE 1 MM More informationQuantity required : 16 |
||||||
|
9 |
GU30037202 - ENTRETOISE 1,5 MM More informationQuantity required : 8 |
||||||
|
10 |
GU30037001 - COUPELLE INFERIEURE More informationQuantity required : 8 |
||||||
|
11 |
GU30037601 - RESSORT INTERNE More informationQuantity required : 8 |
||||||
|
12 |
GU30037501 - RESSORT EXTERNE More informationQuantity required : 8 |
||||||
|
15 |
GU96451450 - VIS SANS TETE More informationQuantity required : 2 |
||||||
|
16 |
GU96451430 - VIS SANS TETE More informationQuantity required : 2 |
||||||
|
17 |
GU95512063 - GOUPILLE More informationQuantity required : 4 |
||||||
|
18 |
GU96508052 - GOUJON More informationQuantity required : 4 |
||||||
|
19 |
GU98450513 - BOUCHON More informationQuantity required : 2 |
||||||
|
20 |
GU90706331 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
21 |
GU30002445 - COUVERCLE POULIE D More informationQuantity required : 1 |
||||||
|
22 |
GU30002545 - COUVERCLE POULIE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/1/img/70511.jpg)
23 |
SEAL RING GASKET- TRANSMISSION (25X40X7) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR 400-500 -873931- More informationQuantity required : 2 |
||||||
|
24 |
GU98622320 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
25 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
26 |
GU30022000 - JOINT TETE More informationQuantity required : 2 |
||||||
|
27 |
GU30034800 - PLAQUE SUPPORT More informationQuantity required : 2 |
||||||
|
28 |
GU30031800 - CULBUTEUR AXE More informationQuantity required : 4 |
||||||
|
29 |
GU30032300 - RACLEUR 1 MM More informationQuantity required : 12 |
||||||
|
29 |
GU30032302 - RACLEUR 1,2 MM More informationQuantity required : 12 |
||||||
|
30 |
GU90271012 - BAGUE SEEGER More informationQuantity required : 4 |
||||||
|
31 |
GU30045740 - POUSSOIR More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/6/2/img/110062.jpg)
32 |
0030404 - RONDELLE S00304000 More informationQuantity required : 8 |
||||||
|
33 |
GU92603010 - ECROU M10X1,5 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/8/3/7/img/125837.jpg)
34 |
ROCKER AXLE O'RING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI (2 VALVES ENGINE) -GU90706094- More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
35 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 4 |
||||||
|
37 |
GU30030200 - CULBUTEUR CPL. More informationQuantity required : 2 |
||||||
|
38 |
GU30030801 - BAGUE More informationQuantity required : 8 |
||||||
|
39 |
GU30030400 - CULBUTEUR More informationQuantity required : 2 |
||||||
|
40 |
GU30034000 - VIS EMBRAYAGE More informationQuantity required : 8 |
||||||
|
41 |
GU30034100 - ECROU More informationQuantity required : 8 |
||||||
|
42 |
GU30023546 - COUVRE-CULASSE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/8/3/img/130483.jpg)
43 |
O'RING GASKET FOR CYLINDER HEAD "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, V10 -GU30023700- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/8/img/132238.jpg)
44 |
GU90706361 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
45 |
GU98622325 - VIS M6X25 More informationQuantity required : 8 |
||||||
|
46 |
GU98620350 - VIS M6X50 More informationQuantity required : 8 |
||||||
|
47 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 8 |
||||||
|
48 |
GU30045340 - GODET SOUPAPE More informationQuantity required : 8 |
