Vehicle Exploded View - MOTO-GUZZI V10 1000 V 10 Centauro 1000 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

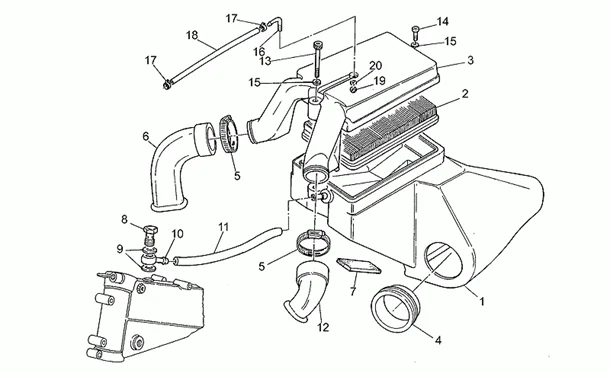

Chassis : 33.06 FILTRE AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/920/V_10_Centauro_1000_1997-1999_33.06.png)
1 |
GU02114000 - CORPS FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/8/1/img/130581.jpg)
2 |
AIR FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI 940 BELLAGIO -GU30113600- More informationQuantity required : 1 |
||||||
|
3 |
GU01113490 - COPERCHIO FILTRO More informationQuantity required : 1 |
||||||
|
4 |
GU01114850 - MANICOTTO ASPIRAZIONE More informationQuantity required : 2 |
||||||
|
5 |
GU12548401 - COLLIER More informationQuantity required : 2 |
||||||
|
6 |
GU02116902 - FOURREAU ASPIR.D. More informationQuantity required : 1 |
||||||
|
6 |
GU02116900 - MANICOTTO ASPIRAZIONE DX More informationQuantity required : 1 |
||||||
|
7 |
GU17489645 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
8 |
GU95990084 - VIS PERCEE More informationQuantity required : 1 |
||||||
|
9 |
GU10154200 - JOINT More informationQuantity required : 2 |
||||||
|
10 |
GU30107401 - RACCORD More informationQuantity required : 1 |
||||||
|
11 |
GU00823952080 - TUBO BENZINA SAE J30 R9 8X14 More informationQuantity required : 1 |
||||||
|
12 |
GU02116901 - MANICOTTO ASPIRAZIONE More informationQuantity required : 1 |
||||||
|
12 |
GU02116903 - FOURREAU ASPIR.G. More informationQuantity required : 1 |
||||||
|
13 |
GU98610365 - VIS More informationQuantity required : 1 |
||||||
|
14 |
GU98622325 - VIS M6X25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
15 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 2 |
||||||
|
16 |
GU37116305 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 1 |
||||||
|
17 |
GU61108500 - COLLIER D9 More informationQuantity required : 2 |
||||||
|
18 |
GU00823956050 - TUBO SAE 30 R7 3/16" More informationQuantity required : 1 |
||||||
|
19 |
GU92630206 - ECROU M6X1 More informationQuantity required : 1 |
||||||
|
20 |
GU37111705 - JOINT More informationQuantity required : 1 |
