Vehicle Exploded View - MOTO-GUZZI V10 1000 V 10 Centauro 1000 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

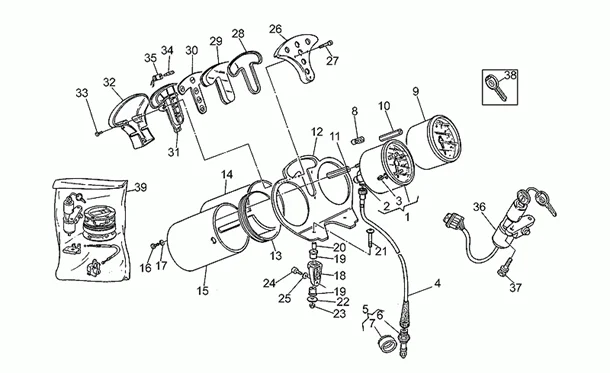

Chassis : 33.02 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/920/V_10_Centauro_1000_1997-1999_33.02.png)
1 |
GU02761500 - COMPTEUR KILOMETRIQUE KMH BORLETTI More informationQuantity required : 1 |
||||||
|
1 |
GU02762400 - TACHIMETRO MPH More informationQuantity required : 1 |
||||||
|
2 |
GU23768310 - RENVOI 60° More informationQuantity required : 1 |
||||||
|
3 |
GU02762800 - PULSANTE AZZERATORE More informationQuantity required : 1 |
||||||
|
4 |
GU01760400 - CAVO TACHIMETRO More informationQuantity required : 1 |
||||||
|
5 |
GU14762510 - RENVOI Z5/11 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
8 |
294131 - AMPOULE 12V 3W More informationQuantity required : 2 |
||||||
|
9 |
GU02767200 - ELECTRONIC REVOLUTION COUNTER More informationQuantity required : 1 |
||||||
|
10 |
GU02763400 - DADO A COLONNA 45MM More informationQuantity required : 2 |
||||||
|
11 |
GU02763000 - COLONNETTA 40MM More informationQuantity required : 2 |
||||||
|
12 |
GU02764000 - BASE SUPPORTO STRUMENTI More informationQuantity required : 1 |
||||||
|
13 |
GU02762301 - GOMMA More informationQuantity required : 2 |
||||||
|
14 |
GU02761900 - SUPPORT COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
15 |
GU02762000 - SUPPORTO CONTAKM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
16 |
GU98230510 - VIS M5X10 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.JPG)
17 |
GU95129100 - RONDELLE ELASTIQUE 5,3X10X0,5 More informationQuantity required : 4 |
||||||
|
18 |
GU02766000 - SUPPORTO CRUSCOTTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/3/7/img/102337.jpg)
19 |
GU02765500 - GOMMINO More informationQuantity required : 4 |
||||||
|
20 |
GU91180721 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
21 |
GU98230636 - VIS More informationQuantity required : 2 |
||||||
|
22 |
GU95100144 - RONDELLE More informationQuantity required : 2 |
||||||
|
23 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
24 |
GU98682316 - VIS M6X16 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
25 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 4 |
||||||
|
26 |
GU02766200 - BOITIER TEMOINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/8/img/70918.jpg)
27 |
959559 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/2/img/102342.jpg)
28 |
GU02768200 - GUARNIZIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/3/img/102343.jpg)
29 |
PROTECTIVE FOAM STRIP FOR DASHBOARD LIGHTS "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, V11, 750 NEVADA -GU02768400- More informationQuantity required : 1 |
||||||
|
30 |
GU02781100 - CACHE VITRE TEMOINS More informationQuantity required : 1 |
||||||
|
31 |
GU02766300 - SCATOLA PORTASPIE More informationQuantity required : 1 |
||||||
|
32 |
GU02766500 - COPERCHIO INF. More informationQuantity required : 1 |
||||||
|
33 |
GU98872110 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
34 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634- More informationQuantity required : 6 |
||||||
|
35 |
GU02768600 - PORTALAMPADA More informationQuantity required : 6 |
||||||
|
36 |
GU01782500 - BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
|
37 |
GU66468115 - VIS A ARRACHEMENT More informationQuantity required : 2 |
||||||
|
38 |
GU30735500 - CLE PAS CANTEE BRUT More informationQuantity required : 1 |
||||||
|
39 |
GU02736800 - KIT SERRATURE More informationQuantity required : 1 |
