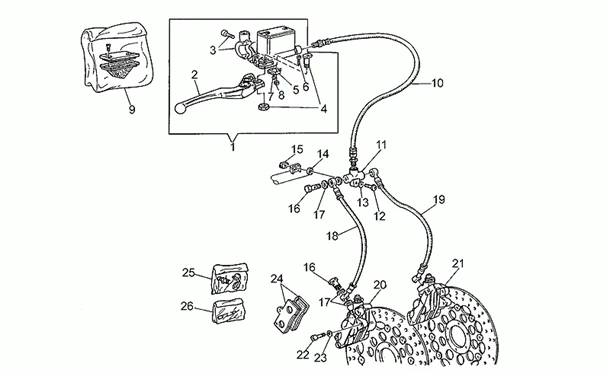

Chassis : 33.10 SYS.FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/920/V_10_Centauro_1000_1997-1999_33.10.png)
1 |
GU02660100 - POMPA FRENO ANT. More informationQuantity required : 1 |
||||||
|
2 |
GU02605600 - LEVA FRENO More informationQuantity required : 1 |
||||||
|
3 |
AP8113203 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
4 |
GU27604815 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/6/5/img/130965.jpg)
5 |
GU30749860 - MINIRUPTEUR More informationQuantity required : 1 |
||||||
|
6 |
GU98200214 - VIS More informationQuantity required : 2 |
||||||
|
7 |
GU92295708 - BILLE More informationQuantity required : 1 |
||||||
|
8 |
GU92601002 - ECROU More informationQuantity required : 1 |
||||||
|
9 |
GU27661115 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
|
10 |
GU02657100 - TUBO FRENO More informationQuantity required : 1 |
||||||
|
10 |
GU02657110 - TUBO FRENO More informationQuantity required : 1 |
||||||
|
11 |
GU31656860 - REPARTITEUR More informationQuantity required : 1 |
||||||
|
12 |
GU98230635 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
13 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 1 |
||||||
|
14 |
GU91180710 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 1 |
||||||
|
16 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
17 |
GU25656100 - GARNITURE More informationQuantity required : 8 |
||||||
|
18 |
GU30658800 - TUYAU HUILE AV D. More informationQuantity required : 1 |
||||||
|
19 |
GU30658801 - TUYAU HUILE AV G. More informationQuantity required : 1 |
||||||
|
20 |
GU30652302 - MACHOIRE FREIN AV D OR More informationQuantity required : 1 |
||||||
|
21 |
GU30652202 - MACHOIRE FREIN AV G OR More informationQuantity required : 1 |
||||||
|
22 |
GU98602525 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
23 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 4 |
||||||
|
24 |
GU30654602 - PLAQUETTES-PAIRE More informationQuantity required : 2 |
||||||
|
25 |
GU30659200 - PURGE+CAPUCHON More informationQuantity required : 2 |
||||||
|
26 |
GU30659102 - KIT PLAQUETTES More informationQuantity required : 2 |
