Vehicle Exploded View - MOTO-GUZZI V10 1000 V 10 Centauro 1000 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

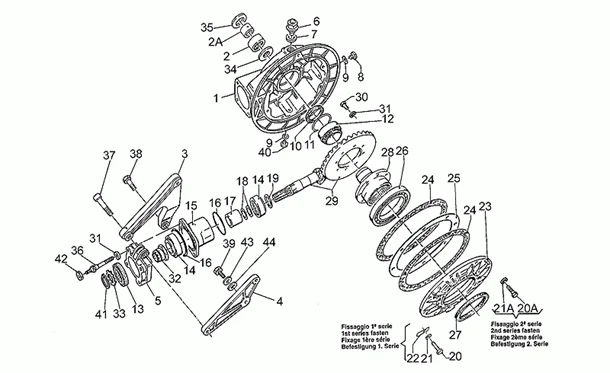

Chassis : 33.01 TRANSMISSION CPL. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/920/V_10_Centauro_1000_1997-1999_33.01.png)
1 |
GU01350350 - CARTER DE TRANSMISSION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/3/7/img/132437.jpg)
2 |
TRANSMISSION BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 V10, DAYTONA, 1100 V11, SPORT -GU92252225- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/4/5/img/132445.jpg)
2 |
BEARING ON TRANSMISSION COVER (LETTER A) "PIAGGIO GENUINE PART" MOTO-GUZZI 1000 DAYTONA, V10, 1100 SPORT, V11 -GU92259025- More informationQuantity required : 1 |
|||||||||
|
3 |
GU01351050 - PLAQUE EXT. More informationQuantity required : 1 |
|||||||||
|
4 |
GU01352150 - PIASTRA INT. More informationQuantity required : 1 |
|||||||||
|
5 |
GU01350950 - SUPPORT More informationQuantity required : 1 |
|||||||||
|
6 |
GU28351260 - BOUCHON HUILE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/8/img/132738.jpg)
7 |
DRAIN CAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU95100709- More informationQuantity required : 1 |
|||||||||
|
8 |
GU95980214 - BOUCHON NIVEAU HUILE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
9 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V65 1982> -GU10528900- More informationQuantity required : 2 |
|||||||||
|
10 |
GU90413850 - BAGUE D'ETANCHEITE 38X50X7 More informationQuantity required : 1 |
|||||||||
|
11 |
GU12351100 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
|
12 |
2B006088R - ROULEMENT A AGUILLES More informationQuantity required : 1 |
|||||||||
|
12 |
2B006088R - ROULEMENT A AGUILLES More informationQuantity required : 1 |
|||||||||
|
13 |
GU90403552 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/2/7/img/132427.jpg)
14 |
BEARING FOR TRANSMISSION SHAFT (24X5) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92249227- More informationQuantity required : 2 |
|||||||||
|
15 |
GU18352400 - FLASQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/8/img/132248.jpg)
16 |
GU90706584 - JOINT 58,42X2,62 More informationQuantity required : 2 |
|||||||||
|
17 |
GU18355100 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
18 |
GU12355202 - RONDELLE AJUSTEM.0,1 MM More informationQuantity required : 1 |
|||||||||
|
18 |
GU12355203 - RONDELLE AJUSTEM.0,15 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355329 - CALE 1,9 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355328 - CALE 1,8 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355327 - CALE 1,7 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355326 - CALE 1,6 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355325 - CALE 1,5 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355324 - CALE 1,4 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355322 - CALE 1,2 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355321 - CALE 1,1 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355320 - CALE 1 MM More informationQuantity required : 1 |
|||||||||
|
19 |
GU19355323 - CALE 1,3 MM More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/2/8/img/129628.jpg)
20 |
GU19357660 - VIS M8X25 More informationQuantity required : 8 |
|||||||||
|
20 |
GU98054425 - VIS M8X25 More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
21 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
21 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 8 |
|||||||||
|
22 |
GU95187008 - PLAQUETTE More informationQuantity required : 8 |
|||||||||
|
23 |
GU17350400 - BRIDE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/3/2/img/129332.jpg)
24 |
GU17350700 - JOINT More informationQuantity required : 2 |
|||||||||
|
25 |
GU17355412 - CALE 1,5 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU17355410 - CALE 1,3 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU17355408 - CALE 1,2 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU17355406 - CALE 1,1 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU17355404 - CALE 1 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU17355402 - CALE 0,9 MM More informationQuantity required : 1 |
|||||||||
|
25 |
GU17355400 - CALE 0,8 MM More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/2/img/132382.jpg)
26 |
TRANSMISSION BEARING (70X10X13) "PIAGGIO GENUINE PART" MOTO-GUZZI DAYTONA, NEVADA, V50, V65, CALIFORNIA, BREVA -GU92201070- More informationQuantity required : 1 |
|||||||||
|
27 |
GU90407085 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
|
28 |
GU17351400 - BRIDE DE TRACTION More informationQuantity required : 1 |
|||||||||
|
29 |
GU30354602 - COUPLE CONIQUE 8/33 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/3/4/img/129134.jpg)
30 |
GU12356300 - VIS More informationQuantity required : 8 |
|||||||||
|
31 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 14 |
|||||||||
|
32 |
GU30356700 - ECROU More informationQuantity required : 1 |
|||||||||
|
33 |
GU30358100 - ARRET More informationQuantity required : 1 |
|||||||||
|
34 |
GU18214650 - RONDELLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/4/2/img/131842.jpg)
35 |
GU37359005 - RONDELLE More informationQuantity required : 1 |
|||||||||
|
36 |
GU01357900 - PRIGIONIERO More informationQuantity required : 4 |
|||||||||
|
37 |
GU98610455 - VIS More informationQuantity required : 1 |
|||||||||
|
38 |
GU30558700 - VIS More informationQuantity required : 1 |
|||||||||
|
39 |
GU98054530 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
40 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766- More informationQuantity required : 1 |
|||||||||
|
41 |
GU90271020 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
|||||||||
|
42 |
GU92630506 - ECROU AUTOBLOQU.M6X1 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
43 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/6/2/img/110062.jpg)
44 |
0030404 - RONDELLE S00304000 More informationQuantity required : 1 |
|||||||||
