Vehicle Exploded View - MOTO-GUZZI V10 1000 V 10 Centauro 1000 1997-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

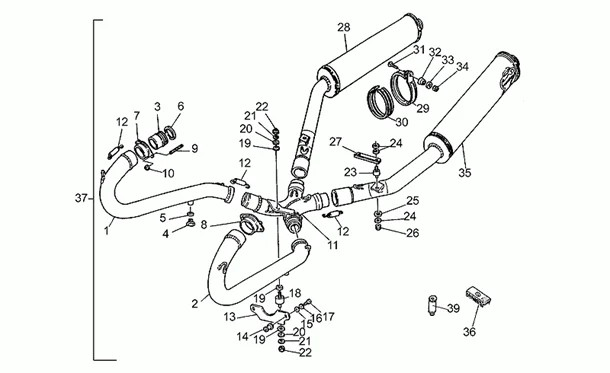

Chassis : 33.39 KIT POTENTIALISATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/920/V_10_Centauro_1000_1997-1999_33.39.png)
1 |
GU01120940 - TUYAU ECHAPPEMENT D. More informationQuantity required : 1 |
||||||
|
2 |
|
||||||
|
3 |
GU02121140 - GOULOTTE More informationQuantity required : 2 |
||||||
|
4 |
GU98110007 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.jpg)
5 |
GU30109330 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
6 |
EXHAUST GASKET- ON HEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU90718370- More informationQuantity required : 2 |
||||||
|
7 |
|
||||||
|
8 |
|
||||||
|
9 |
GU96508038 - GOUJON More informationQuantity required : 4 |
||||||
|
10 |
GU92630508 - ECROU More informationQuantity required : 4 |
||||||
|
11 |
GU01123940 - COLLETTORE More informationQuantity required : 1 |
||||||
|
12 |
GU30127240 - RESSORT More informationQuantity required : 6 |
||||||
|
13 |
|
||||||
|
14 |
GU30128840 - ECROU More informationQuantity required : 2 |
||||||
|
15 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
|
16 |
GU95021106 - RONDELLE EVENT. More informationQuantity required : 2 |
||||||
|
17 |
GU98054318 - VIS More informationQuantity required : 2 |
||||||
|
18 |
GU93213020 - SUPPORT ELAST. More informationQuantity required : 1 |
||||||
|
19 |
GU30126740 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU95100239 - RONDELLE More informationQuantity required : 2 |
||||||
|
21 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/8/img/132538.jpg)
22 |
GU92660208 - ECROU More informationQuantity required : 2 |
||||||
|
23 |
GU93212521 - SUPPORT ELAST. More informationQuantity required : 2 |
||||||
|
24 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 8 |
||||||
|
25 |
|
||||||
|
26 |
GU92660600 - ECROU More informationQuantity required : 2 |
||||||
|
27 |
GU01126940 - PLAQUE More informationQuantity required : 1 |
||||||
|
28 |
GU02123040 - SILENZIATORE DX TERMIGNON More informationQuantity required : 1 |
||||||
|
29 |
GU01129440 - FASCETTA SILENZIATORE More informationQuantity required : 2 |
||||||
|
30 |
GU01128140 - GOMMINO More informationQuantity required : 2 |
||||||
|
31 |
GU98620450 - VIS More informationQuantity required : 2 |
||||||
|
32 |
GU01128340 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
33 |
GU95100218 - RONDELLE More informationQuantity required : 2 |
||||||
|
34 |
GU92630208 - ECROU More informationQuantity required : 2 |
||||||
|
35 |
GU02122940 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
36 |
GU02727340 - EPROM KK KIT 1 More informationQuantity required : 1 |
||||||
|
37 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.jpg)
39 |
GU03163330 - SUPPORTO SENSORE More informationQuantity required : 1 |
