Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

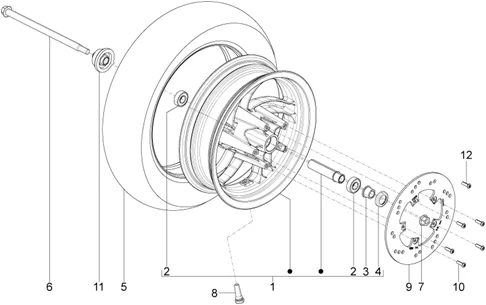

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_04.11.PNG)
1 |
666311 - ROUE AV CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
2 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910- More informationQuantity required : 2 |
||||||
|
3 |
564527 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.JPG)
4 |
564475 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
|
5 |
853075 - PNEU 120/70-14" 52K CITY ONE (CST) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/4/4/img/90444.jpg)
6 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" 50-125 FLY 2012>, TYPHOON 2010>/APRILIA 50 SR MOTARD 2010>, SPORT-CITY ONE -668796- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
7 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
8 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/0/7/img/67007.jpg)
9 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 50 NRG 1998>2005 AV/GILERA 50-125 RUNNER 1998>2005/APRILIA 50-125 SPORT-CITY ONE 2008>2011, 50 SR MOTARD 2012> -561714- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
10 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/1/img/67051.jpg)
11 |
SPEEDOMETER SOCKET "PIAGGIO GENUINE PART" 50 TYPHOON 2011/APRILIA 50 SR MOTARD 2011, 50-125 SPORT-CITY ONE 2008> -56434R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
12 |
709674 - VIS More informationQuantity required : 2 |
