Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

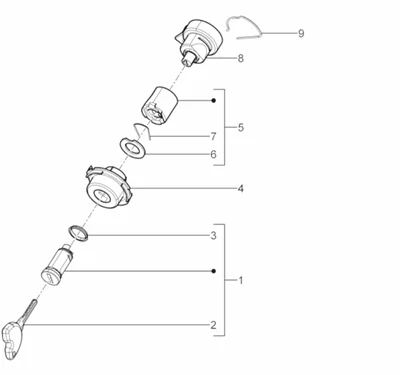

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_02.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/9/2/img/69792.jpg)
1 |
LOCK KEY SET (2 KEYS) "PIAGGIO GENUINE PART" 50 TYPHOON 2010>/APRILIA 50 SR MOTARD 2010>, SPORT CITY-ONE -860193- More informationQuantity required : 1 |
||||||
2 |
860691 - CLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
3 |
LOCK GASKET RING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298731- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/4/img/66304.jpg)
4 |
LOCK BODY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -1B002607- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
5 |
LOCK BLOCK "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125 VESPA GTS/GILERA 50 RUNNER/APRILIA 50 SR -1B006291- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
6 |
STEERING FLAT WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -298594- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
7 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298838- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/1/5/img/198215.JPG)
8 |
1D002436 - COMMUTATEUR A CLE More informationQuantity required : 1 |
||||||
|
8 |
1D002436 - COMMUTATEUR A CLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
9 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -253937- More informationQuantity required : 1 |
