Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

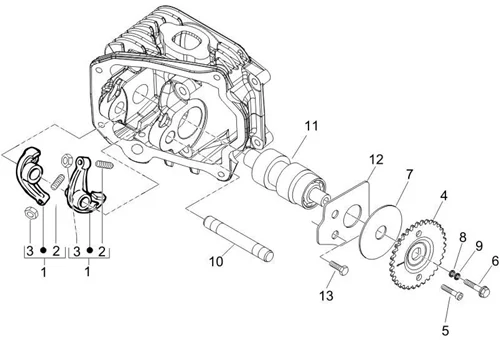

Moteur : 01.11 GROUPE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_01.11.PNG)
1 |
EXHAUST/INTAKE ROCKER "PIAGGIO GENUINE PART" PIAGGIO 125 FLY, LIBERTY, VESPA LX 2005, TYPHOON 2010>, VESPA-S 2007>/APRILIA 125 SR MOTARD 2010>, MOJITO 2003>, SPORT CITY-ONE 2008> -8444895- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/1/img/68731.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/7/img/66667.jpg)
3 |
484819 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/9/img/70669.jpg)
4 |
877771 - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
5 |
018639 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
6 |
1A003115 - VIS M5X25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/9/img/66759.jpg)
7 |
487832 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/8/img/68918.jpg)
8 |
830446 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/9/img/68919.jpg)
9 |
830447 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
486339 - AXE DU CULBUTEURS More informationQuantity required : 1 |
||||||
|
11 |
CAMSHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER 125CC- 2 VALVES -8459325- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/9/img/70659.JPG)
12 |
877309 - T?LE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
13 |
484123 - VIS More informationQuantity required : 2 |
