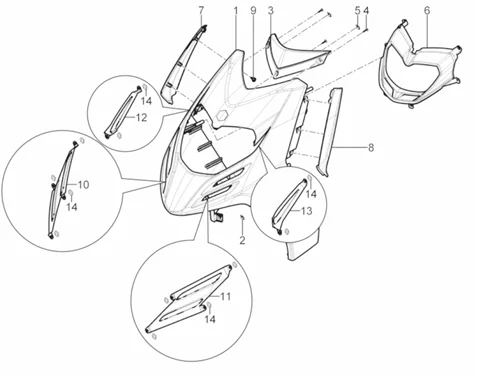

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
FRONT SHIELD - "PIAGGIO GENUINE PART" APRILIA 50-125 SR MOTARD 2012> WHITE -6574610087-

1
P2R reference P2R reference 38594
Maker reference Maker reference 6574610087

FRONT SHIELD - "PIAGGIO GENUINE PART" APRILIA 50-125 SR MOTARD 2012> WHITE -6574610087-

More information

Quantity required : 1
FRONT SHIELD - SCOOT "PIAGGIO GENUINE PART" 50 TYPHOON 2012>/APRILIA 50 SR SUPER MOTARD BLACK 94 -6574610090-

1
P2R reference P2R reference 68350
Maker reference Maker reference 6574610090

FRONT SHIELD - SCOOT "PIAGGIO GENUINE PART" 50 TYPHOON 2012>/APRILIA 50 SR SUPER MOTARD BLACK 94 -6574610090-

More information

Quantity required : 1
65746100AO - TABLIER

1
P2R reference P2R reference 38595
Maker reference Maker reference 65746100AO

65746100AO - TABLIER

More information

Quantity required : 1
FRONT SHIELD - SCOOT "PIAGGIO GENUINE PART" 50 TYPHOON 2012>/APRILIA 50 SR SUPER MOTARD GREY 742/B -65746100EZ-

1
P2R reference P2R reference 89823
Maker reference Maker reference 65746100EZ

FRONT SHIELD - SCOOT "PIAGGIO GENUINE PART" 50 TYPHOON 2012>/APRILIA 50 SR SUPER MOTARD GREY 742/B -65746100EZ-

More information

Quantity required : 1
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

2
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

More information

Quantity required : 6
67207100XH1 - MONOGRAMME

3
P2R reference P2R reference 68451
Maker reference Maker reference 67207100XH1

67207100XH1 - MONOGRAMME

More information

Quantity required : 1
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 x16) -CM178606-

4
P2R reference P2R reference 96280
Maker reference Maker reference CM178606

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606-

More information

Quantity required : 3
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

5
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

More information

Quantity required : 2
HEADLAMP SHROUD "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -65746800XH1-

6
P2R reference P2R reference 68355
Maker reference Maker reference 65746800XH1

HEADLAMP SHROUD "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -65746800XH1-

More information

Quantity required : 1
FRONT RIGHT BAFFLE "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -65746300XH1-

7
P2R reference P2R reference 68352
Maker reference Maker reference 65746300XH1

FRONT RIGHT BAFFLE "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -65746300XH1-

More information

Quantity required : 1
FRONT LEFT BAFFLE "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -65746200XH1-

8
P2R reference P2R reference 68351
Maker reference Maker reference 65746200XH1

FRONT LEFT BAFFLE "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -65746200XH1-

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

9
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

More information

Quantity required : 6
RIGHT LOWER SHIELD METALIC RETINA "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664307-

10
P2R reference P2R reference 68373
Maker reference Maker reference 664307

RIGHT LOWER SHIELD METALIC RETINA "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664307-

More information

Quantity required : 1
LEFT LOWER SHIELD METALIC RETINA "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664309-

11
P2R reference P2R reference 68375
Maker reference Maker reference 664309

LEFT LOWER SHIELD METALIC RETINA "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664309-

More information

Quantity required : 1
RIGHT UPPER SHIELD METALIC RETINA "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664306-

12
P2R reference P2R reference 68372
Maker reference Maker reference 664306

RIGHT UPPER SHIELD METALIC RETINA "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664306-

More information

Quantity required : 1
LEFT UPPER SHIELD METALIC RETINA "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664308-

13
P2R reference P2R reference 68374
Maker reference Maker reference 664308

LEFT UPPER SHIELD METALIC RETINA "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664308-

More information

Quantity required : 1
LOCKING WASHER FOR FRONT FAIRING "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664454-

14
P2R reference P2R reference 68384
Maker reference Maker reference 664454

LOCKING WASHER FOR FRONT FAIRING "PIAGGIO GENUINE PART" 50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011> -664454-

More information

Quantity required : 12
